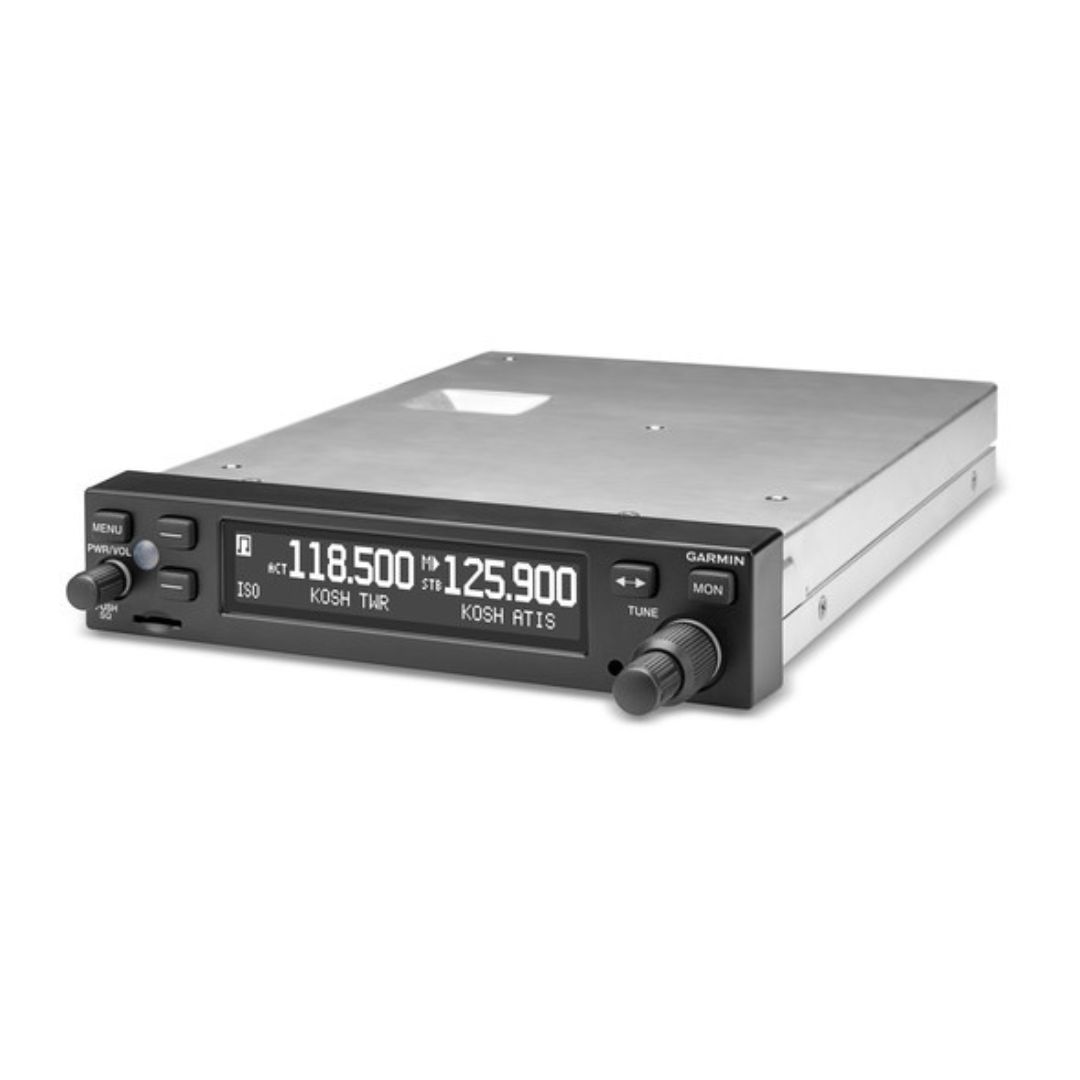

010-01087-41 GTR200B,Standard,PMA

Part #: 010-01087-41
Garmin

0100108741

R$21,259.25

Comparar

Overview

Powerful Features in a Small Package

  • All-in-1 radio and stereo intercom solution with standby monitoring and stereo input
  • Powerful 10 W Comm with a slim 1.35” tall design and large sunlight-readable display
  • Displays facility name and type when tuned to user-defined presets or supplied by compatible portables/G3X™
  • Advanced audio panel features including 3D Audio and auto-squelch
  • Optional Bluetooth® connectivity enables easy access to phone calls and audio entertainment

Gain More than Just a Comm

Designed specifically for G3X Touch equipped aircraft, the GTR 200 combines powerful Comm capabilities with advanced workload-reducing features formerly only found in high-end certified systems. Its slim 1.35” tall design allows you to make the most of limited space in your panel while 10 W of transmit power helps ensure solid communications between you and ATC or other aircraft in your vicinity. Information displays on the large, sunlight-readable display with brightness levels that can adjust automatically to the natural light level in the cockpit, or can be adjusted manually by the pilot. The GTR 200 offers 25 kHz channel spacing and utilizes a standard density 37-pin connector for easy installation.

Going above and beyond the call of duty of a traditional Comm, the GTR 200 includes a 2-place stereo intercom that is ideal for 2-seat aircraft; no additional hardware is required to communicate with your passenger. Advanced auto squelch automatically senses the noise level in the cockpit and adjusts the mic squelch for effortless intercom use regardless of the cockpit noise level. Listen to music inputs with Hi-Fi, home theater-like quality, featuring bass boost as well as pop, classical and rock music equalizer options. For added simplicity, optional Bluetooth connectivity adds the ability to make phone calls and listen to audio entertainment wirelessly. Pilot-configurable soft keys can provide 1-touch access to emergency frequency tuning, pilot audio isolation, saved frequencies list, music mute or push-to-talk. Plus, optional installed remote switches on the flight controls allow pilots to keep their hands on the controls while performing functions like swapping the active and standby frequencies.

Reduce Your Workload

Know exactly to whom you’re talking with the GTR 200. The device will display the facility name and type when you are tuning from one of the 20 user defined frequency preselects, or selecting a frequency from one of the nearest or flight plan airports (when transferred from a compatible Garmin aviation portable or G3X™ system). In addition, the GTR 200 automatically stores the 20 most recently accessed frequencies for easy retrieval. The 121.5 emergency frequency is also never more than a button press away; simply hold down the frequency swap button to tune it.

Enjoy Crystal-Clear Standby Frequency Monitoring

With its standby frequency monitoring feature, the GTR 200 gives you the ability to listen to ATIS while monitoring ATC. Swapping your active and standby frequencies is done with a single touch of a button or optionally installed switches on the controls. Even in single-radio aircraft, you’ll no longer have to worry about missing an ATC call or other critical transmission. 3D Audio capability separates the active and standby frequencies in your headset so it’s easier to differentiate between sources.

Part: 010-01087-41 Categorias: , , , Tags: , ,
Peso 0.87 lbs
Brands

Specifications

  • Active and standby flip-flop frequencies with location and type identifiers
  • One-touch 121.5 emergency channel tuning
  • Comm frequency monitor function (listens to standby while monitoring the active)
  • 3D Audio separates active and standby frequencies as well as the intercom in headset
  • Auto-squelch listens to the natural noise in the cockpit and automatically adjusts the squelch level
  • Automatic display of the airport identifier and type after tuning a frequency from the user defined presets or a frequency list transferred from a compatible portable GPS or G3X system
  • 10 W transmit power and 25 kHz spacing
  • Large, sunlight readable display
  • Total product footprint is 1.35” tall by 6.25” wide. Has only a 9.4” behind-the-panel depth including connectors (8” without connectors).
  • Only 1.34 lbs. (1.91 lbs. with rack and connectors)
  • Optionally installed switches allow remote control of frequency flip-flop and/or pilot/co-pilot squelch
  • Volume control bar graph display
  • High-visibility alphanumeric LCD display
  • Built-in photocell for backlight control, or support for external 14V/28V lighting bus
  • Backlit keypad controls
  • Transmit status indicator
  • Receive status indicators for both active and standby (when monitored)
  • Monitor function enabled indicator
  • Built-in, 2-place stereo voice activated intercom
  • 2 mono and 1 stereo audio inputs for external systems alerts and music
  • Stores/recalls 20 user defined frequencies with labels
  • Stores/recalls previous 20 frequencies used
  • Squelch test function
  • Extensive installation assistance screens to make it easy to set up external audio sources to the correct level
  • Stuck mic time-out; returns to receive mode to prevent frequency congestion
  • 2 front panel-mounted, user-defined softkeys to assign to frequently used functions such as music on/off and pilot isolate. Can also be assigned to PTT to be used in case the installed PTT button or wiring fails.
  • MicroSD™ card slot for easy software updates
  • Mono/stereo headset detection
  • Easy installation with a standard density 37-pin connector
  • 14/28 V power

When Interfaced with G3X and compatible Garmin aviation portables:

  • Automatic transfer of airport frequency groups (ATIS, Ground, Tower, UNICOM, Departure, etc.) for each airport in the flight plan plus nearby airports as you fly. Each transferred frequency includes the location and type identifier for display on the radio after tuning. No GTR 200 database is required for this feature.
  • 1-button access to airports in the flight plan and those near the aircraft

Physical Characteristics

  • Bezel height: 1.35″ (34.29 mm)
  • Bezel width: 6.25″ (158.8 mm)
  • Rack height (dimple-to-dimple): 1.375″ (34.93 mm)
  • Rack width: 6.30″ (160.02 mm)
  • Depth behind panel with connectors (measured from face of aircraft panel to rear of connector backshells): 9.39″ (238.51 mm)
  • GTR 200 weight (unit only): 1.34 lbs (0.61 kg)
  • GTR 200 weight (installed with rack and connectors): 1.91 lbs (0.87 kg)

General Specifications

  • Operating temperature range: -20° C to +55° C
  • Humidity: 95 percent non-condensing
  • Altitude range: -1,500 ft to 55,000 ft
  • Current draw¹ at 14 VDC:
    • 0.6 A, typical when receiving
    • 3.0 A, typical when transmitting
    • 7.5 A maxiumum, 90 percent modulated into 3.1 VSWR and 11 V power input voltage
  • Current draw¹ at 28 VDC:
    • 0.3 A, typical when receiving
    • 1.40 A, typical when transmitting
    • 3.75 A maxiumum, 90 percent modulated into 3.1 VSWR and 22 V power input voltage

Display Specifications

  • Display size (WxH): 3.4″ (88.0 mm) x 0.843″ (21.4 mm)
  • Active area (WxH): 2.95″ (74.98 mm) x 0.486″ (12.36 mm)
  • Resolution: 200 x 33 pixels
  • Viewing angle: left 45°; right 45°; up 10°; down 30°

COM Transmitter Specifications

  • Microphone input: Two inputs, standard carbon or dynamic mic with integrated preamp. The GTR 200 provides a 150 Ω AC input impedance and supplies the microphone with an 11 V bias through 470 Ω +/- 5 percent
  • Modulation capability: 85 percent with 250 to 2500 mVRMS microphone input at 1000 Hz
  • Modulation: AM double sided emission designator, 6K00A3E (118-136.975 MHz)
  • Frequency range: 118.000 to 136.975 MHz, 25 kHz channel spacing
  • Frequency tolerance: +/-5 ppm from -20°C to +55°C
  • Output power: 10 W carrier minimum
  • Duty cycle: 20 percent
  • Carrier noise level: At least 35 dB (SNR)
  • Stuck mic time-out: 35 seconds time-out, reverts to receive
  • Demodulated audio distortion: Less than 25 percent distortion when the transmitter is at 85 percent modulation at 350 to 2500 Hz

COM Receiver Specifications

  • Frequency range: 118.000 to 136.975 MHz, 25 kHz channel spacing
  • Headset audio output: 60 mW minimum into a 150 Ω load
  • Audio response: Less than 6 dB of variation between 350 and 2500 Hz
  • Audio distortion: Less than 25 percent at rated output power
  • Sensitivity: SINAD greater than 6 dB when the RF level is -107 dBm with 30 percent modulation
  • Squelch: Automatic squelch with manual override

Bluetooth Specifications

  • Available on GTR200B only
  • Bluetooth 3.0 Compliant
  • Supported profiles: A2DP and AVRCP (music) and HFP (phone)
  • Paired devices stored: 10
  • Connections allowed: 1 device
  • Supported devices: Phones, tablets, and GDL 51/52 (music)
  • Firmware updates: Free and field loadable by micro-SD card

Included

  • GTR 200
  • Installation rack
  • Connector kit/backplate
  • Manual
