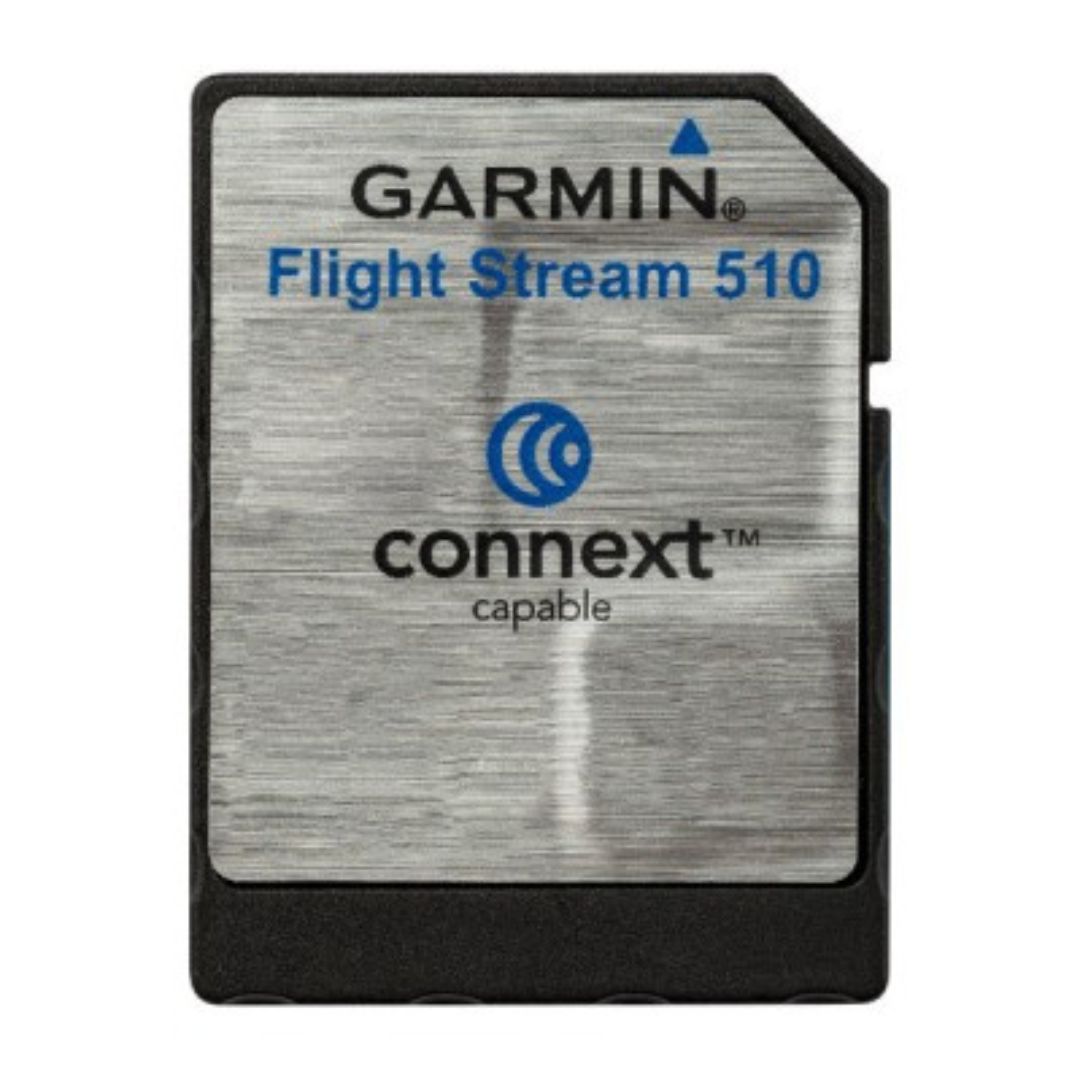

010-01322-11 Flight Stream 510 Standard

Advanced Connectivity and Revolutionary Avionics Integration

• Enables Database Concierge wireless avionics database updates
• Permits 2-way flight plan transfers between compatible apps and avionics¹
• Initiate phone calls and send/receive text messages from contacts on your Apple® device, using the Garmin Pilot™ app through your compatible avionics, optional Connext® datalink and service plan
• Streams traffic, weather, GPS information and back-up attitude information from your avionics to select portables and mobile devices
• Lets mobile devices wirelessly control SiriusXM™ satellite music from any position in the cabin

Improving the Connected Cockpit

Cost-effective and non-intrusive, Flight Stream 510 is a patented memory card that contains Wi-Fi and Bluetooth® connectivity capability. When installed in the slot of a GTN 650/750 series navigator, Flight Stream can be connected with up to 2 compatible Apple or Android™ mobile devices operating Garmin Pilot as well as Garmin aera® 660, aera 795 and aera 796 portables.

The wireless connection enables Database Concierge wireless database transfer. At home, you can select individual databases (including Jeppesen® NavData or Garmin Navigation Database, Obstacle, Terrain, SafeTaxi®, FliteCharts®, Basemap and the AOPA Airport Directory) on the Garmin Pilot app, download them and then store them to your mobile device for later use. Once Flight Stream 510 establishes a wireless connection in the airplane, it transfers your up-to-date databases directly to the GTN in minutes, where they’ll wait in standby until their effective date. For added flexibility, a USB card reader is provided to customers who would like to download databases directly to the Flight Stream 510 card using a computer.

Staying in Sync

If you have multiple GTNs or G500/G600 glass flight displays, you’ll enjoy additional benefits from database synchronization. The GTN acts like a computer server to automatically transfer and synchronize your databases to the flight display and navigator, behind the scenes. In the meantime, you can view and use a departure, approach and arrival chart immediately – even if the databases are still synchronizing.

Communication Control

Flight Stream 510 makes it easier to stay connected with your loved ones on the ground, too. When you run Garmin Pilot on a compatible Apple mobile device, you can pair it to your GTN with an optional GSR 56 datalink and access text and voice services both in-flight and on the ground over the Connext network (subscription required). That means you can easily send and receive messages with your device — and even use its existing contact database — as well as complete phone calls through your headset.

Streaming Situational Awareness

Complete your flight plan in the comfort of home or the FBO lounge on the Garmin Pilot, ForeFlight Mobile or FltPlan Go apps. Then, with only a few taps, wirelessly transfer it in seconds to the GTN over the Flight Stream 510 Bluetooth connection — and give yourself more time for other preflight activities prior to departure. Garmin Pilot will even prompt you if there are any changes to your flight plan by ATC so you can automatically send that amendment to your navigator. And if you need to alter your flight plan en route, you can make the change on 1 device and quickly sync it on the other.

Plus, you can share GPS position information from your GTN navigator to display precise position information on mobile devices. And with a G500/G600 flight display, you can also

SiriusXM Remote Control

With a GDL 69/69A SXM datalink receiver (subscription required), Flight Stream 510 supports the display of SiriusXM Aviation weather in Garmin Pilot in the U.S. and Canada. Plus, you and your passengers also have remote control of SiriusXM satellite music selections, volume controls and favorite audio channels from anywhere in the cabin.

With Flight Stream 510, you get the awareness, simplicity and convenience offered by a wireless cockpit — while leaving the database and information management to us — so you can devote more time to the thing you love most: flying your Garmin-equipped aircraft.

Flight Stream and Remote Capabilities

*Requires GSR 56, services subscription and compatible display, like the GTN series.

Apple is a trademark of Apple Inc. Bluetooth^® is a registered trademark of Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Android™ is a registered trademark of Google Inc.
