010-02305-00 LRU Kit, G3X Touch Certified

Overview

Bundled Components for Your G3X Touch™ System

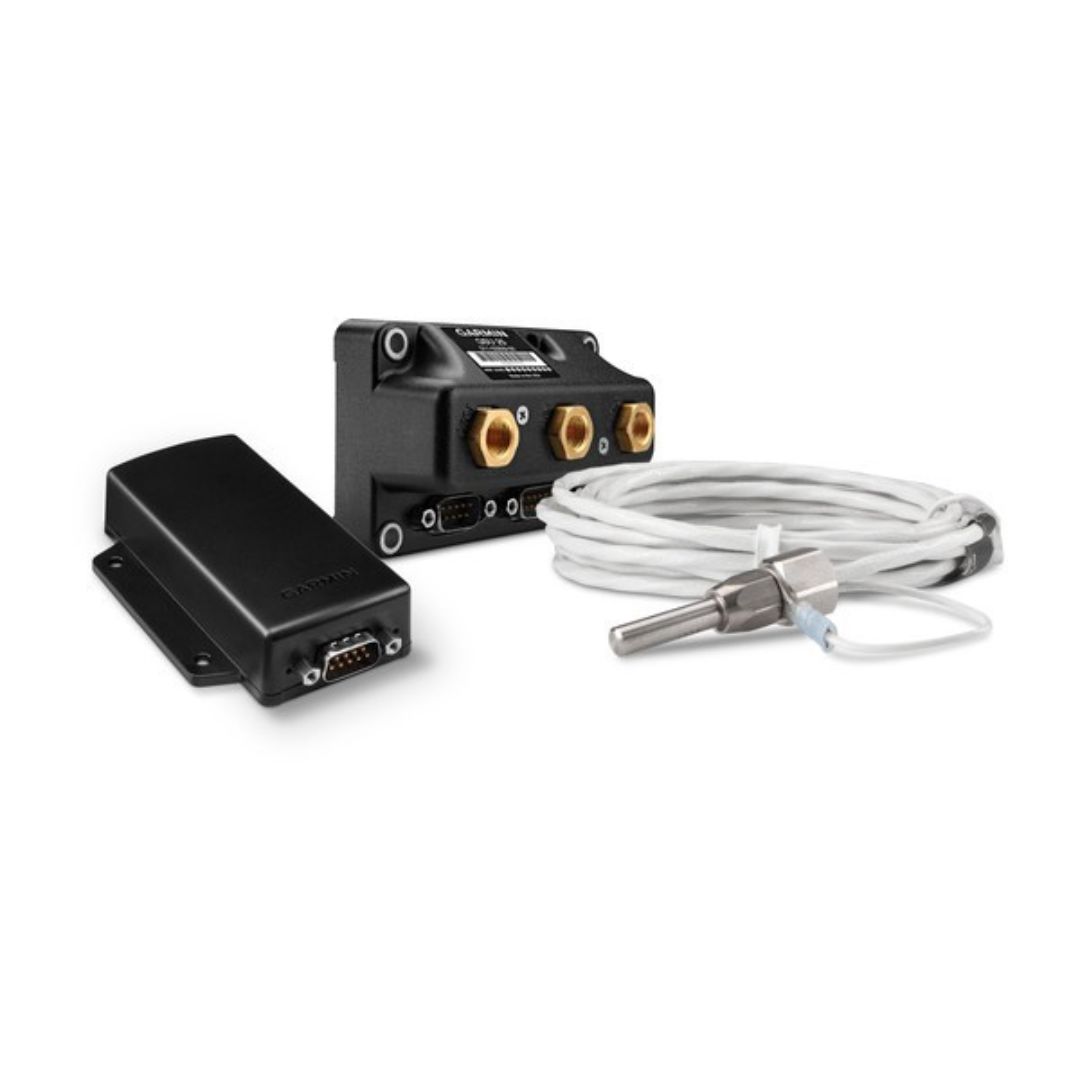

Package will include a GPS-aided digital ADAHRS (air data and attitude/heading reference system), a solid-state magnetometer, an outside air temperature (OAT) probe and a configuration module to provide your system with the information it needs.

Digital ADAHRS

Leveraging sensor technology from our high-end glass flight deck systems, the GSU 25 ADAHRS provides highly accurate and reliable referencing of your aircraft position, rate, vector and acceleration data. The module takes up just a fraction of the space and weight previously required by conventional gyro-based instrument systems. In the high-performance kit, the GSU 25D ADAHRS unit offers the same functionality with processing appropriate to aircraft flying at indicated airspeeds above 300 knots.

Magnetometer

Garmin’s GMU11 solid-state, triaxial magnetometer is a remote-mounted device that use magnetic field measurements to provide electronically stabilized heading data for flight instrumentation.

Temperature Probe

The GTP 59 is an OAT probe that provides data to the G3X system’s air data computer for true airspeed, density altitude and other essential flight calculations.

Configuration Module

The G3X Touch system configuration module stores configuration and calibration data for the system.

Smart Design, Simple Installation

Installation of G3X system sensors in your aircraft is simple and straightforward — with Garmin’s standard mounting hardware available. For builders and installers who want to take the guesswork out of cockpit modernization, these bundled sensor kits can help make quick work of putting it all together.
