Avionics & Instruments, Instruments, Mid Continent

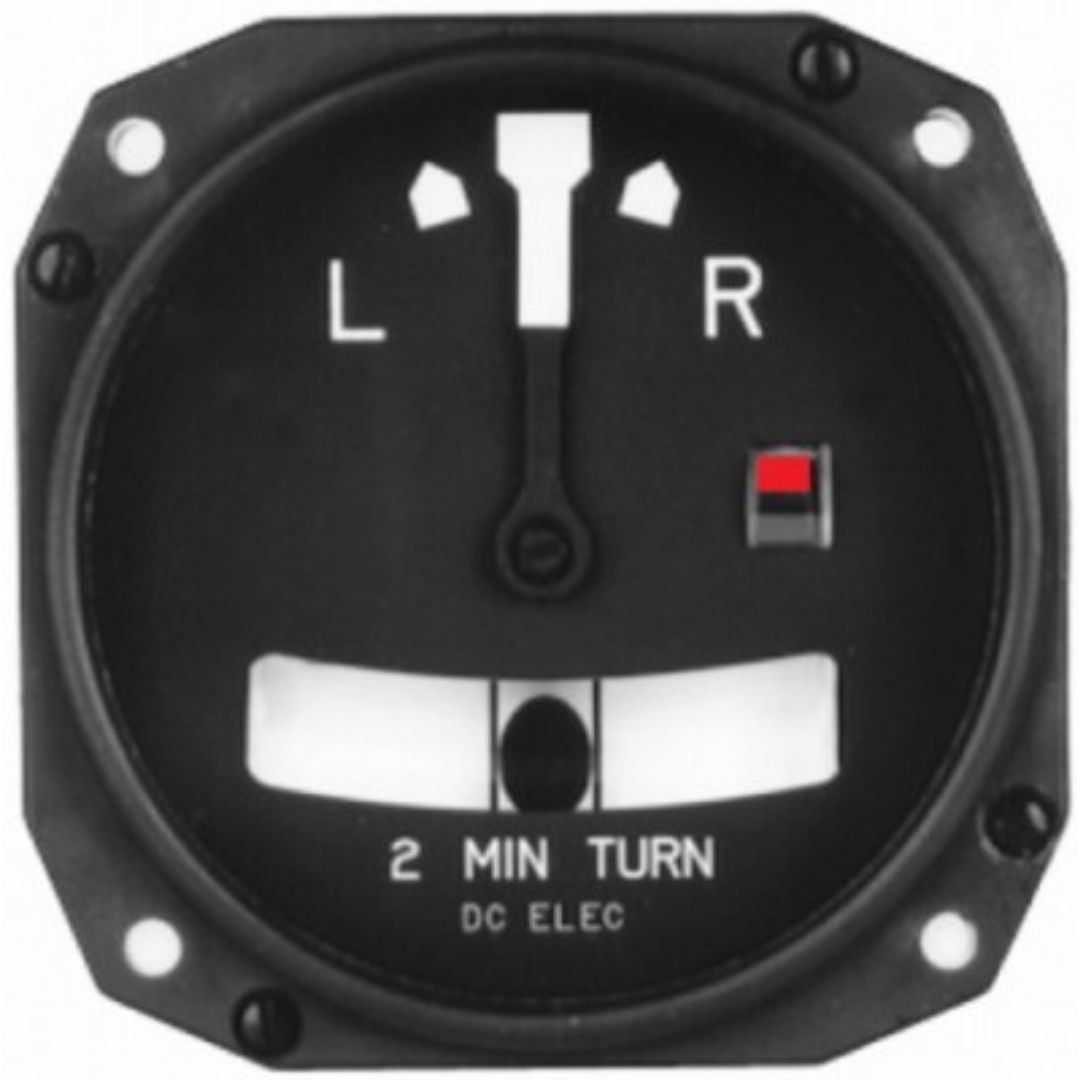

1234T100-8ATZ 12-32V
Part #: 1234T100-8ATZ
Availability:
Disponível por encomenda
1234T1008ATZ
R$26,937.48
Disponível por encomenda
CompararOverview
| Proven reliability through HALT testing and OEM use since 1999, it’s hard to beat this indicator. With more than 1 million units produced, it is the choice of more than 15 aircraft companies. For use with most single engine, turbo/piston prop aircraft. |
| Peso | 0.54 lbs |
|---|---|
| Brands |
Features
- Certified to FAA TSO C3b
- OEM standard – proven reliability
- Power warning indicator
- 5, 14, or 28v lighting
- Designed and built in Wichita, Kansas, USA
- One year limited warranty
Specifications
- Input Voltage Range VDC: 12 – 32
- Rotor Type: DC
- Power Consumption Nominal: 0.35 A
- Inclinometer Ball Color: Black
- Inclinometer Background Color: White
- Dimensions: 3 1/4″ x 3 1/4″ x 4 1/4″
- Maximum Weight: 1.2 lbs.
- Connector Number of Pins: 3
- Turn Indication: Standard 2–Minute Turn
- Operating Temperature: –30°C to + 50°C
- Operating Altitude: –1,000 ft. to 35,000 ft.
- Glass: HEA non-glare
- Mounting: 3 1/8″ front or rear panel
