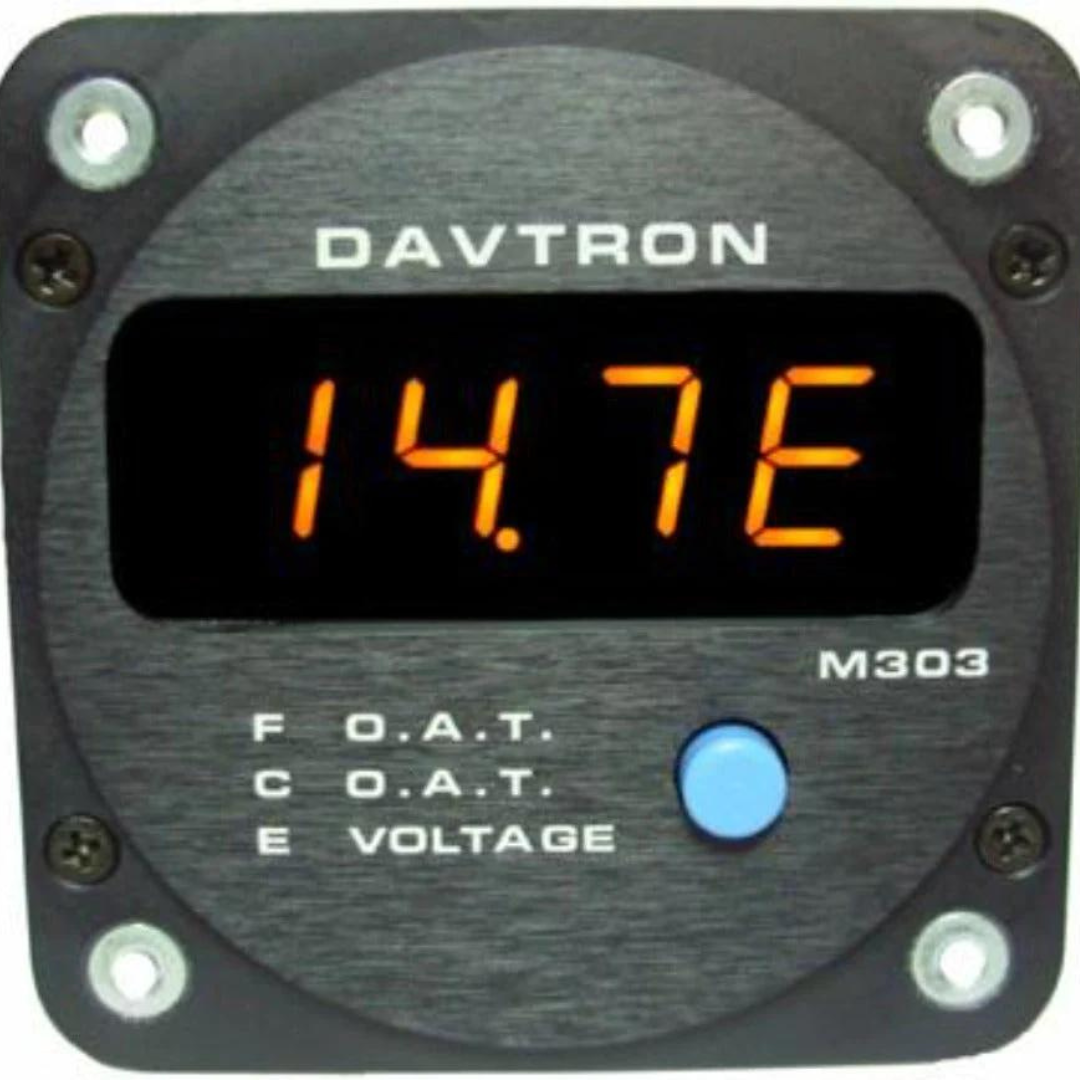

M303-2 ROUND 2 1/4

Specifications

• Temperature range: -40°C to +100°C
• -40°F to +212°F
• Operating Temp: -25°C to + 60°C
• Voltage Range: 10 to 32 Volts +/- 0.2 Volts Typ.
• LED with automatic dimming
• Input Voltage: 14 to 28 Volts
• Input Current: 100 mA max.
• Warranty: 1 year
• Davtron FAA PMA # PQ1062NM

Installation

• Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
• FAA/PMA Approvals
• Beech 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33 and 35-A33.

Download FAA 337 Form
