M307FD TEMP GAUGE

Specifications

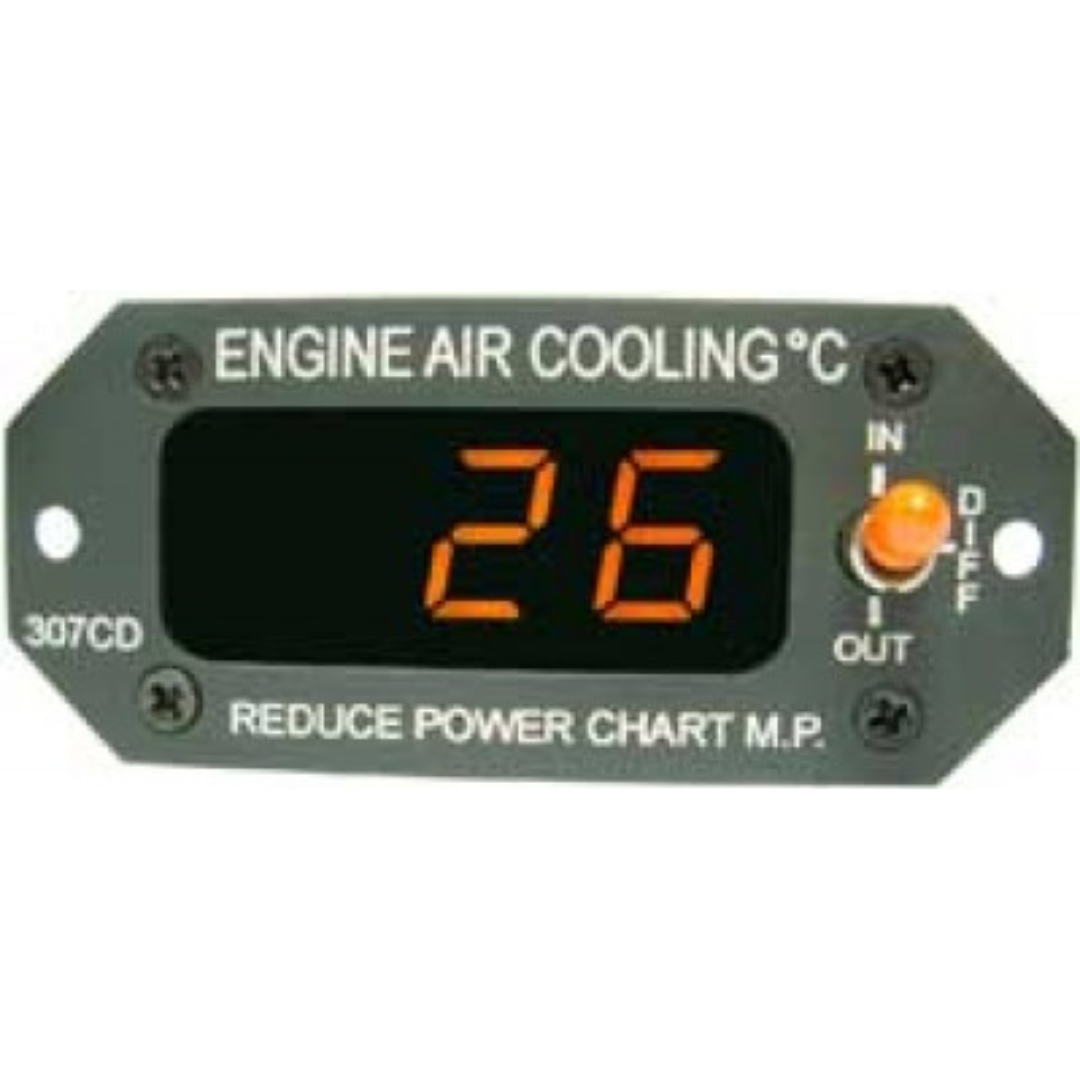

• Temp. Range: 307CD -65°C to +150°C Accuracy ±1% of full scale

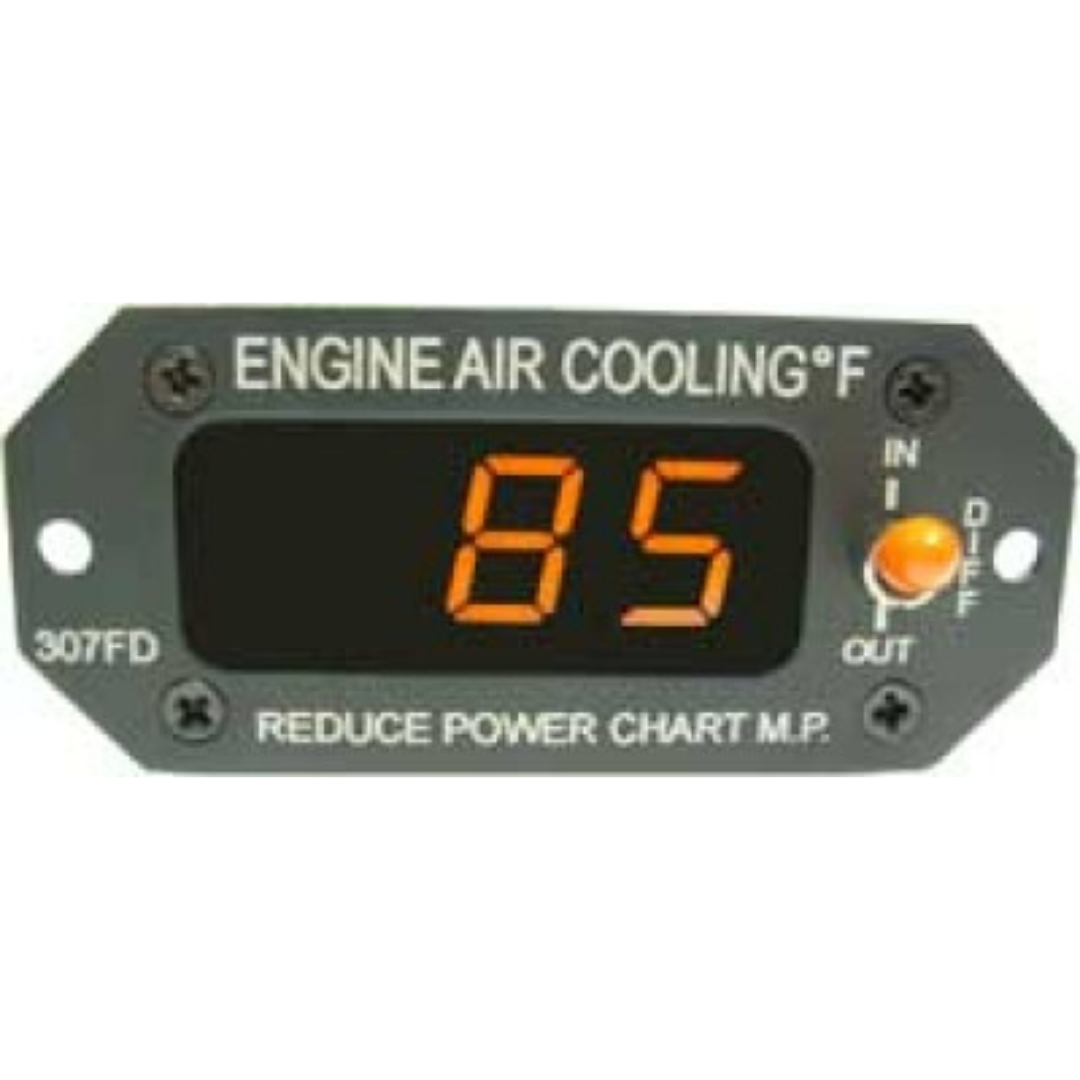

• Temp. Range: 307FD -70°F to +290°F Accuracy ±1% of full scale
• Input Voltage: 12 and 30 Volts
• Input Current: 150 mA max.
• Operating Temp.: -25°C to +60°C
• Warranty: 1 year

Installation

• Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
• FAA/PMA Approvals
• Piper Aircraft Models PA-28-201-T, PA-28R-201T, and PA-28RT-201T

Download FAA 337 Form
