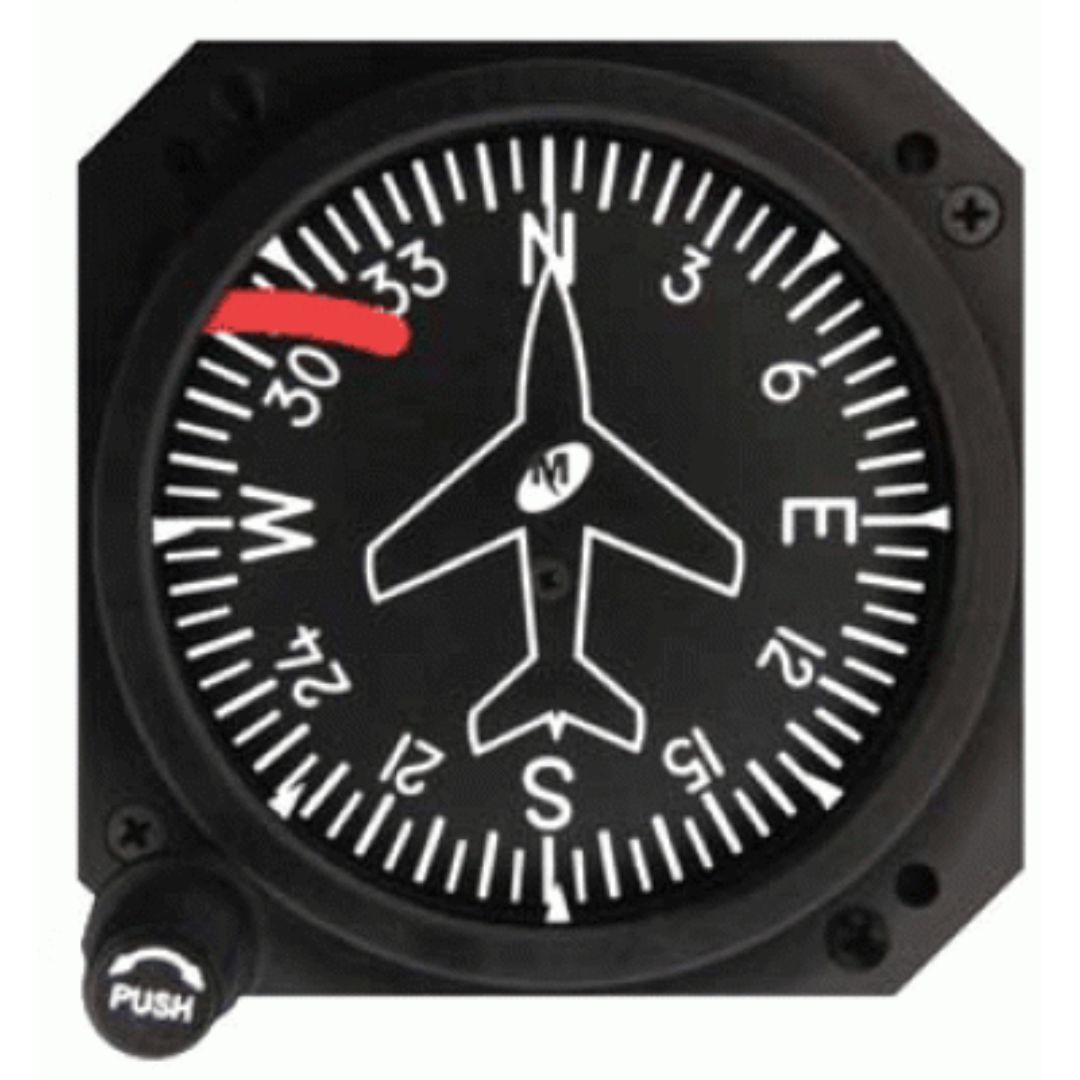

3300-10 10–32 VDC

Features

• Weighs just 1.9 lbs. – One pound less than most electric directional gyros
• Multi-voltage 10–32 volt DC input remains valid until the aircraft main battery discharges to 10 VDC
• Direct replacement for many AIM205 and RC Allen RCA15 units
• Designed specifically for use in high vibration applications
• Warning flag monitors rotor speed and power input
• Anti-reflective glass enhances visibility and reduces fatigue
• Worldwide support program
• Requires less than half the power of standard directional gyros
• FAA TSO-C5e certified and RTCA DO-160E qualified
• Exceptional RTCA DO-160E HIRF immunity
• Designed and built in Wichita, Kansas, USA
• One-year limited warranty

Specifications

Power Input
10–32 VDC

Current Rating
At 14 VDC, Start: 1.4A Max., Run: 0.44A nominal
At 28 VDC, Start: 0.6A Max., Run: 0.22A nominal

Weight
1.9 lbs.

Length
4.65 inches

MTBF
2,500 hours

Temperature Range
–40°C to +55°C (–40°F to 130°F)

Altitude
–15,000 to +50,000 feet

Connector
4-pin (MS3116E8-4P)

Mating Connector
Mid-Continent P/N 9015514 (MS3116F8-4S or equivalent)

Color
Index Marks, Text, Symbolic Airplane, Logo: White
Bezel, Dial Background: Black
Power/Rotor Speed Warning Flag: Red

Glass
Special HEA anti-reflective coating

Mounting
Rear panel mount in standard 3 1/8” round panel cutout
