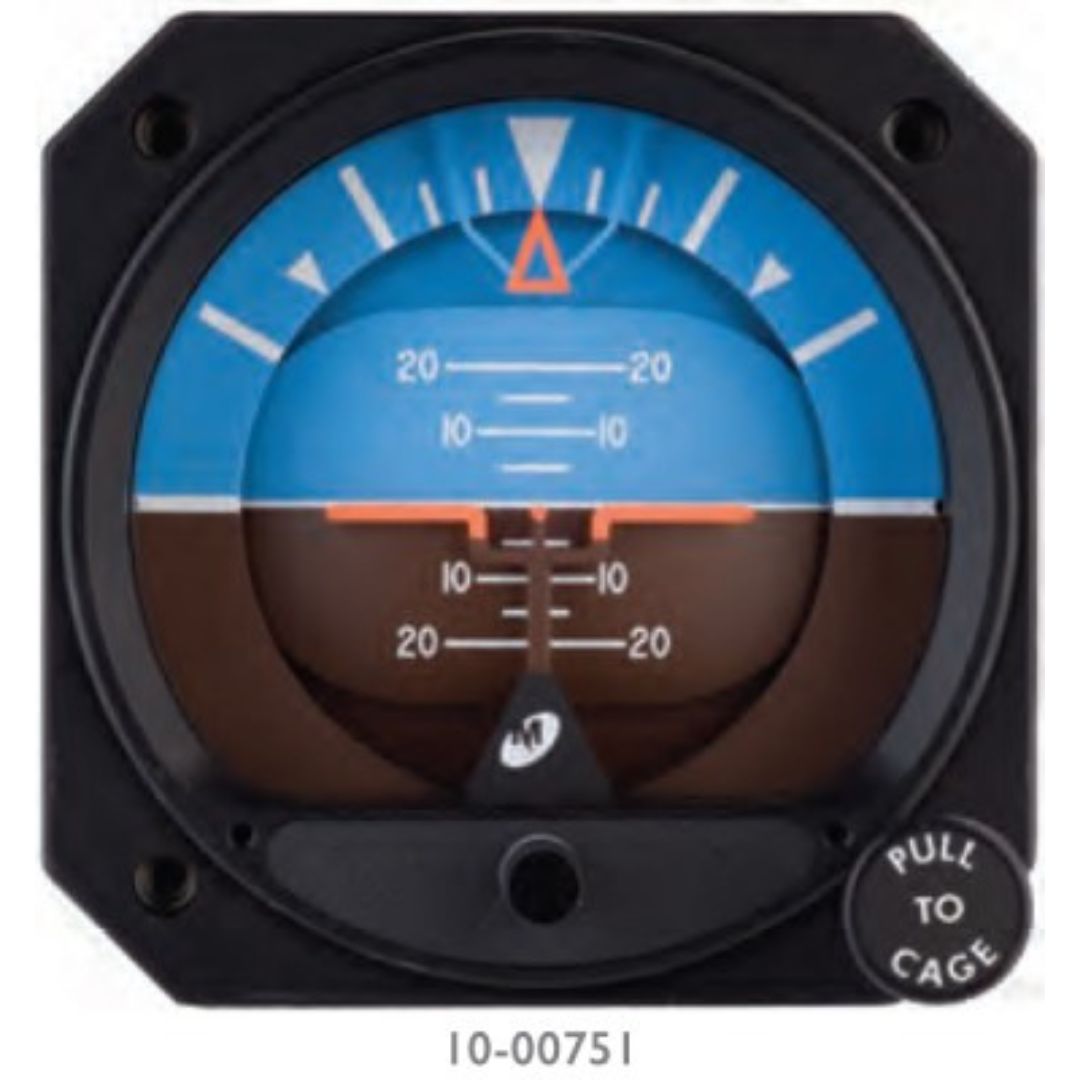

4300-311 MID-CONTINENT ATTITUDE INDICATOR ELECTRIC – 3-INCH
Part #: 4300-311
Availability:
Disponível por encomenda
4300311
R$48,967.27
Disponível por encomenda
CompararOverview
| Engineered as a primary or standby artificial horizon in fixed-wing aircraft and helicopters, this indicator’s single connection makes installation a snap. This indicator is standard equipment on many OEM aircraft, including the Beechcraft Baron and Bonanza. Featuring 10–32 volt DC operation, anti-reflective glass, long-life lighting and 7,500 hours MTBF, this is a cost-effective and safe alternative to unreliable vacuum systems.
Featuring 10-32 volt DC operation, antireflective glass, long-life lighting and 7,500 hours MTBF, this is a cost-effective and safe alternative to unreliable vacuum systems. |
| Peso | 1.22 lbs |
|---|---|
| Brands |
Features
- Custom versions available to match existing instrument/EFIS displays
- A safe alternative to unreliable vacuum systems
- Single connector installation for primary and optional standby battery models
- Exceptional Value – 7,500 hours MTBF, more than double the life of most electric gyros
- Perfect for use as a primary or standby artificial horizon in fixed-wing aircraft and helicopters
- 10–32 volt DC operation for use in both 14 and 28 volt aircraft
- Anti-reflective glass enhances visibility and reduces fatigue
- Field replaceable lighting
- Approved to FAA TSO-C4c and RTCA/DO-160D certified
- Qualified to DO-160 for helicopter vibration
- Designed and built in Wichita, Kansas, USA
- One year limited warranty
Specifications
- MTBF: 7,500 Hours
- Certification: FAA TSO-C4c, RTCA/DO-160D
- Power Input, 10–32 VDC:
1400 mA start, 600 mA max. running at 14 VDC input
700 mA start, 300 mA max. running at 28 VDC input - Lighting: 5, 14 or 28 VDC Incandescent; field-replaceable tray wired through main connector
- Dial: Rotating roll dial, traditional symbolic airplane
- Glass: Special HEA anti-reflective coating
- Weight: 2.7 lbs.
- Length: 6.6 inches
- Mounting: Rear mount in standard 3 1/8” round panel cutout
- Temperature Range: –30°C to +70°C (–22°F to +158°F)
