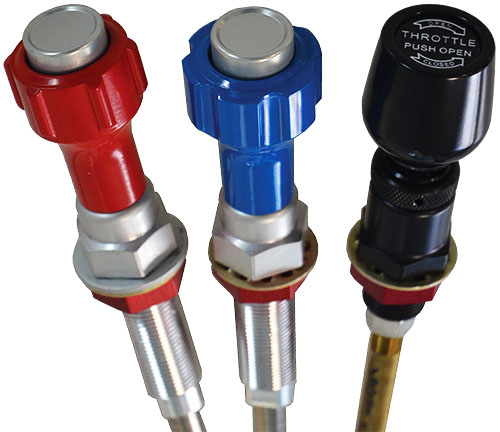

565-580-038 PROP CONTROL
Part #: MC565-580-038
Disponível por encomenda
MC565580038
Comparar
PNs Alternativos
- PN: 6401-1 - View
Overview
| Solid Metal Construction The fittings and components are made from anodized aluminum, stainless steel, and brass. All critical swage connections are metal to metal for continued dependability. The Vernier locking devices are precision formed and heat treated in critical wear areas.A Superior Conduit System The McFarlane conduit is made from coiled .065 inch plated carbon steel wire that has been formed to a “D” shape for increased strength and to give a smooth inside diameter. A virgin Teflon™ liner has been inserted into the center of the coil for low friction and high temperature operation. The conduit is over-braided with 304 stainless steel wire and then covered with a stabilized nylon anti-abrasion jacket. This system gives McFarlane controls good flexibility with smooth low friction operation even when routed with multiple small radii bends. The stainless steel braid gives their controls good tensile strength and a solid feel under heavy push loads without sacrificing routing flexibility.Knobs Make a Difference The “pilot friendly” knobs are all compression molded from reinforced phenolic resin. The phenolic knobs are hard and stable. Unlike the soft injection molded knobs, they resist scratching and the effects of sunlight and age. The McFarlane knobs meet the latest F.A.R. requirements for shape and color.Vibration Dampening Features The McFarlane metal swivel joints have a unique Viton rubber vibration dampening sleeve with a spring load system that stops engine induced vibration in the push rod guide tube and metal swivel joint. Molded Viton boots are also used on the push rod guides to seal out contaminates. The Viton rubber withstands the high temperatures of the engine environment while resisting degradation from oil and solvents. This system drastically reduces the vibration fretting and wear that leads to premature control failure.Special Lubrication During assembly the McFarlane controls have a special life-time lubrication applied to critical sliding surfaces. This molybdenum disulfide and Teflon™ based lubricant with a synthetic grease base has been specially formulated to reduce friction and prevent galling and contamination locking of the control components from -70 F to over 1000 F.Consistent Quality The production of McFarlane controls is continuously interrupted for inspections of all critical elements during assembly. Every control is 100% inspected rather than just sampled for inspections. Attention is given to every detail at McFarlane Aviation. For instance, they verify the torque required to rotate their vernier mechanism on every vernier control before it is released. A record is kept for each lot of controls with inspection results and complete component traceability. Tough in any Environment Time Tested Recommended Service Life |
| Peso | 0.65 lbs |
|---|---|
| Dimensões | 57.75 × 1.5 × 1.5 in |
| Brands |
Não há avaliações ainda.
