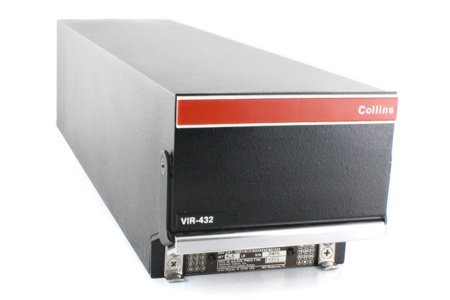

| TSO: |
(VOR) C40b; (LOC) C36d; (GS) C34d; (MB) C35d |
EUROCAE: |
(VOR) ED-22A; (LOC) ED-46; (GS) ED-47; (MB) 1/WG7/70 |
| RTCA: |
(VOR) DO-153A; (LOC) DO-131A; (GS) DO-132A; (MB) DO-143 |
ENVIRONMENTAL: |
DO-160A, categories /A2E1/B/JY/ EXXXXXZ/BZ/AZA; EUROCAE ED-14A |
| TEMPERATURE: |
-55 to 70C (operation) |
DIMENSIONS: |
3.80″W x 3.360″H x 13.969″L |
| WEIGHT: |
4.5 lb. |
ALTITUDE: |
70000 ft. |
| CHANNELS: |
160 VOR, 40 LOC, and 40 GS |
FREQUENCY CONTROL: |
CSDB or ARINC 429 |
| VOR/LOC FREQUENCY RANGE: |
VOR- 108.00 to 117.95 MHz. LOC- 108.10 to 111.95 MHz |
VOR/LOC CHANNEL SPACING: |
50 kHz |
| VOR/LOC SENSITIVITY: |
(aural) 3uV for 10dB; (flag) 2.8uV for flag out-of-view |
VOR/LOC SELECTIVITY: |
6dB +-15 kHz min; 60dB +-41 kHz max |
| VOR/LOC SPURIOUS RESPONSES: |
At least 70dB below desired response |
VOR/LOC AUDIO OUTPUT: |
100mW nom into 600 ohm load with 30% modulation, at least 1000Hz |
| VOR/LOC ANALOG OUTPUT: |
OBI sine/cosine; capable of driving three RMI pointers |
VOR/LOC OBS RESOLVER: |
Provides HSI course resolver signals. Outputs ac signals on OBS E and F. HSI return ac signals on OBS A and B. OBS G,C, and D connected to internal common |
| VOR/LOC DEVIATION: |
Output capable of driving one to five loads, 1000 ohm each, without external strapping. Deviation sensitivity in VOR, 150 mV for 10 deg; in LOC, 90 mV for 0.093 DDM. VOR deviation accuracy +-0.75 deg; LOC deviation centering accuracy +-4.0 mV dc. Polarity: VOR, positive deviation for airplane left of course; LOC, positive deviation for 90 Hz > 150 Hz |
VOR TO/FROM: |
Output capable of driving one to three loads, 200 ohm each. Drive level TO: +80 to +165 mV. Drive level FROM: -80 to -165 mV |
| VOR/LOC FLAG: |
(low level) output capable of driving one to five loads, 1000 ohm each. Output 1.0 to 1.9 V dc, current limit 10 mA |
VOR/LOC SUPERFLAG: |
Nominal output +26Vdc, min output 12.0 Vdc at 250 mA with input power at +16 Vdc |
| VOR/LOC RNAV: |
Output is a buffered VOR/LOC detector output adjusted nominally for 0.5 Vrms with standard VOR signal input |
GS FREQUENCY RANGE: |
329.15 to 335.00 MHz |
| GS CHANNEL SPACING: |
150 kHz |
GS SENSITIVITY: |
7 microvolts for flag out of view |
| GS SELECTIVITY: |
6 dB at +-25.5 kHz min; 60 dB at +-160 kHz max |
GS SPURIOUS RESPONSE: |
-60 dB |
| GS DEVIATION OUTPUT: |
Capable of driving one to five 100ohm loads. 78 mV for 0.091 DDM, max output is +-0.35Vdc. Polarity: positive down for 90 Hz > 150 Hz |
GS FLAG: |
(low level) +1.0 to +1.9 Vdc for flag out-of-view, current limited to 10mA; capable of driving one to five 1000 ohm loads |
| GS SUPERFLAG: |
(high level) Nominal output is +26 Vdc, current limited to 250 mA for a valid input signal |
MB FREQUENCY: |
75.00 MHz |
| MB SENSITIVITY: |
High sens: 200 uV +-6dB; Low sens: 1500 uV +-6dB |
MB SELECTIVITY: |
6dB at +-16 kHz min; 60dB at +-170 kHz max |
| MB LAMP OUTPUT: |
Capable of driving dual 3-lamp load, 6.3V lamps at 200 mA or less per blub on each bulb |
MB HI/LO STRAP: |
Used when parallel control is selected |
