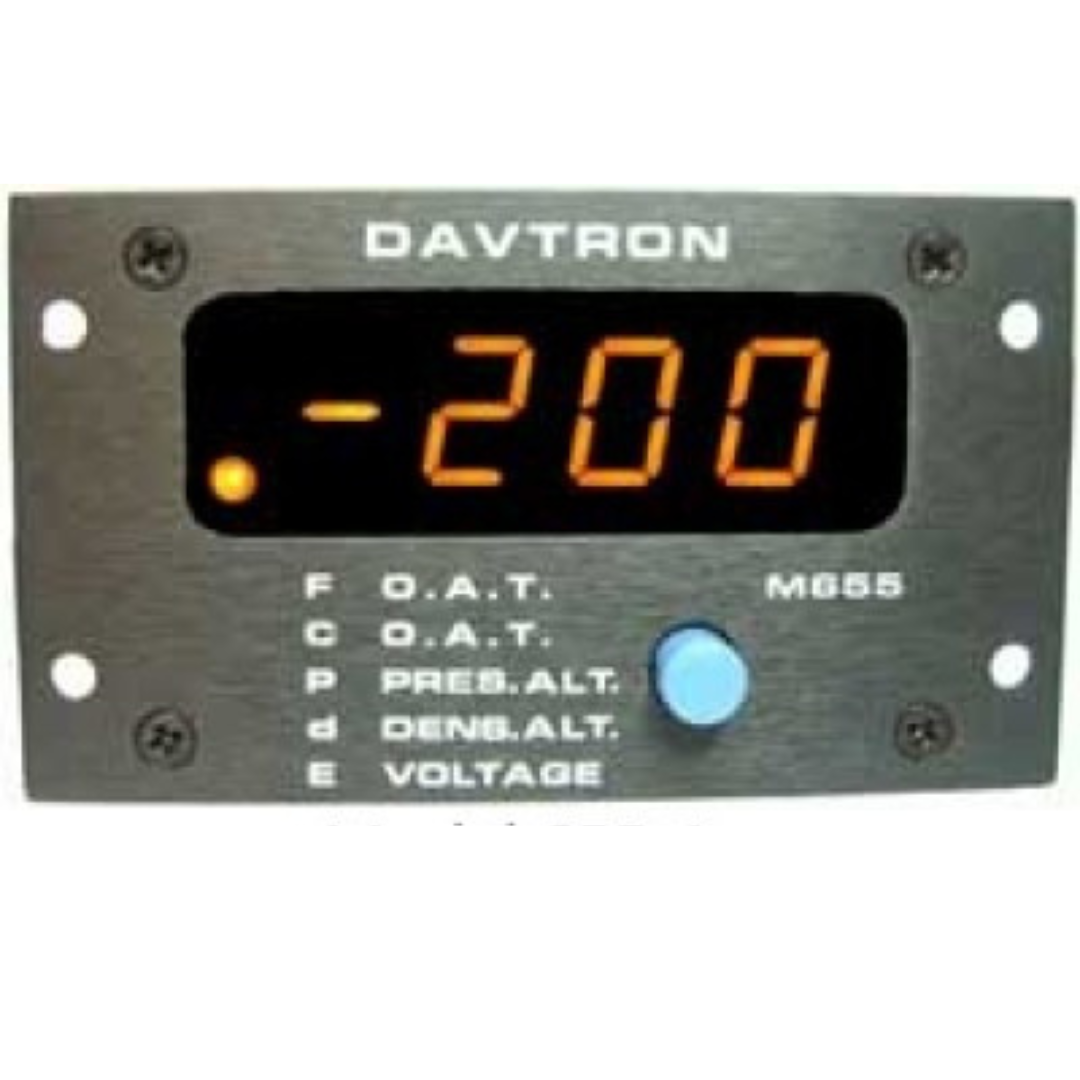

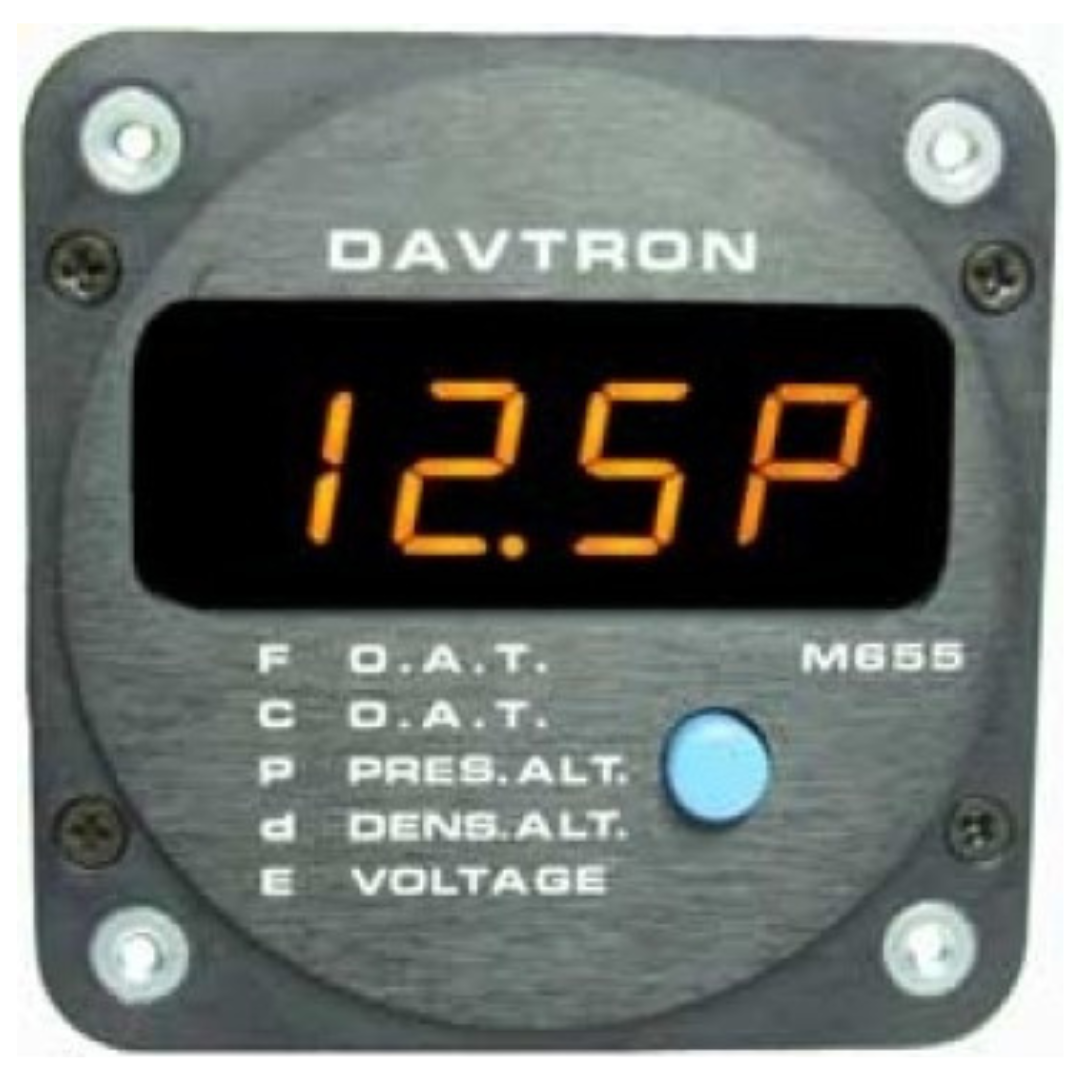

M655-2-NVG DEN/PRESS ALT

Specifications

• Density altitude: -10,000 to 70,000 ft.
• Pressure altitude: -1000 to 62,700 ft. (Depends on encoder range.
• Flashing annunciator character on incorrect encoder inputs.
• Temperature range: -55 °C to +100 °C ±2°C Typ. -67 °F to +212 °F
• Voltage range 10V to 32V
• Input voltage: 14 or 28 volts.
• Input current: .35 amps max.
• Warranty: 1 year

Installation

• Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
• FAA/PMA Approvals
• Beech Models 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, and 35-A33

Download FAA 337 Form
