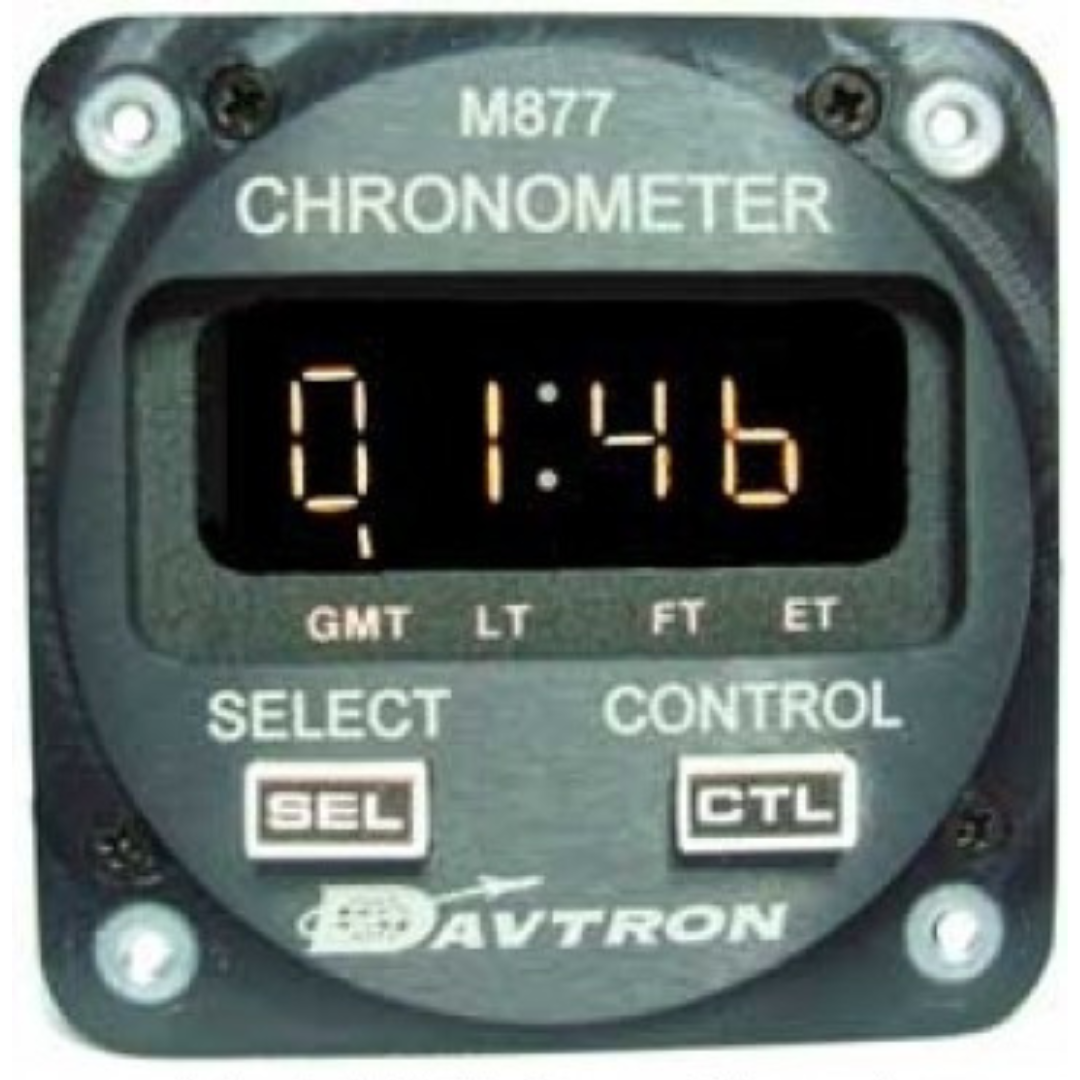

M877-28V DLX CHRNMTR

Specifications

• Greenwich Mean Time (GMT): 24 hour format.
• Local Time: 12 hour format, 24 hour option.
• Flight Time: Records in 99:59 standard, 99:99 hour option.
• Flight Time Alarm: Full set range flight time.
• Elapsed Time Count Up: Starts in minutes, seconds, then hours,minutes up to 99:59 hrs.
• Elapsed Time Count Down: Settable from 1 sec. to 59 minutes, 59 sec.
• Elapsed Time Alarm: Activates at zero when counting down.
• Incandescent Displays: Readable in sunlight.
• Input Voltage: 28V (14V or 5V backlight available)
• Automatic Dimming
• Battery Type: AA alkaline.
• Polarizing Filter
• Keep Alive Current: .00004 Amps.
• Input Current: .2 Amps.
• Crystal Reference: -40C to +60C .001%
• Warranty: 1 year.

FAA Approval

Davtron Inc has determined that installation of all Davtron products are considered minor according to (FAR) 21.93(a). All of our units are similar in design, with their electrical, mounting size, and weight being similar. Even though we consider installation of Davtron products to be minor, it is up to the installing mechanic to determine if the installation is minor or major. For a minor, a maintenance log book entry is all that is required. The FAA has determined that the installation of replacement clocks in non-transport category airplanes is considered to be minor, therefore only a maintenance log book entry is required referencing letter 100S-GA-10-53 from the FAA.

Letter 100S-GA-10-53

For a major installation on a non PMA approved airframe, a FAA 337 form should be filed with your local FSDO and a possible field approval done. FAA PMA# PQ1062NM (View a sample 337 form)Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.

FAA/PMA Approvals

Mystere Falcon 50 and 900

Learjet Airplanes 35A and 60

BAE Jetstream Model 4101

Download FAA 337 Form
