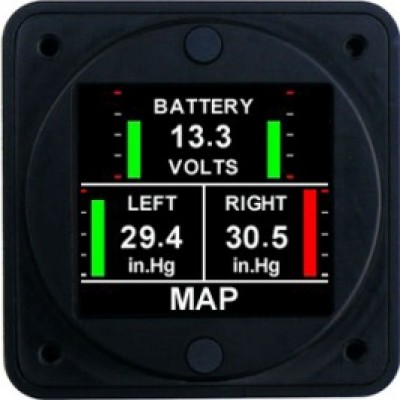

AEROSPACE LOGIC – DUAL MANIFOLD PRESSURE & VOLTMETER KIT

Part #: MP202VK
Aerospace Logic

MP202VK

R$14,004.02

Comparar

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

The MP202 is an advanced, next generation dual manifold pressure combinational instrument.

Manifold pressure functionality is TSO’d and meets the pressure accuracy requirements of SAE AS8042.

Instruments with a part numbers with a suffix “V” include an additional display screen with a full function voltmeter.

Functional displays include:

  • Real-Time analog data depiction and digital value display for both left and right engines
  • Graphical trend display of both left and right manifold pressure data
  • Include both sensors
Peso 0.11 lbs
Dimensões 2.45 × 2.45 × .9 in
Brands

Specifications

Certification / Compliance
TSO C45b
Canadian STC
FAA STC
Certified as primary replacement

Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX

Software
DO-178B

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC

Signal Input
Pressure 0.5V to 3.0V

Display Units
Manifold Pressure: 0.0 inHg to 50.0 inHg
Voltmeter: 6.0V to 36V

Accuracy
Manifold Pressure: AS8042 +/- 0.1inHg
Voltmeter: +/- 0.1V

Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control

Annunciator Output
100mA sink with reverse EMF protection

Software Functionality

Primary Option 1: Left and right manifold pressure
Primary Option 2: Left and right manifold pressure, voltmeter
Trend Graph: Graphic display of left and right manifold pressure

Interface Connector
DB-25

Software Functionality

Dimensions
2.45” X 2.45” X 0.9”

Weight (excluding harness)
4.05 oz

Finish
Black anodized 6061 aluminum
