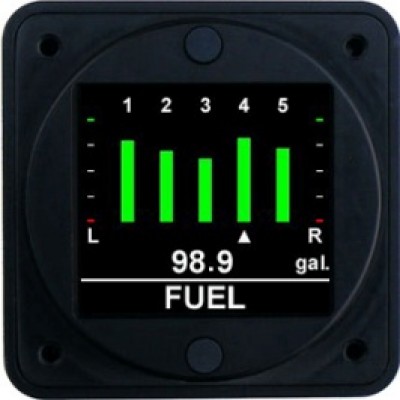

AEROSPACE LOGIC FIVE FUEL LEVEL GAUGE
Part #: FL205, FL205D
FL205, FL205D
Comparar
Overview
| Aerospace Logic AOG Expedite Available, additional charges will apply.
The FL20X instruments are advanced, next generation airborne fuel level reporting instruments that support from two to six fuel tanks using resistive, float type fuel senders. Fuel level functionality is TSO’d and meets the repeatable accuracy requirements of SAE AS405C, +/- 1US Gallon. Functional displays include:
*FL205D Instrument for CIES Sender Version Only* |
| Peso | 0.61 lbs |
|---|---|
| Dimensões | Não aplicável |
| Brands | |
| Select Model: | FL205- Resistive Sender, FL205D- CIES Sender |
Specifications
Certification / Compliance
TSO C55a
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Frequency: 10Hz to 300Hz (+/- 0.1Hz accuracy)
Sender Orientation
User selectable, proportional or inversely proportional to fuel quantity
Accuracy
AS405C +/- 1 USG
Display Units
US Gallons or Litres, user selectable
Range
0 to 120 USG (defined by fuel sender/tank size)
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Interface Connector
DB-25
Software Functionality
Primary Display: Fuel level in all tanks
Trend Graph: Graphic display of level vs time
Finish
Black anodized 6061 aluminum
