AEROSPACE LOGIC FOUR CYLINDER EGT CHT COMBINATION KIT
Part #: ECT204
ECT204
R$18,039.45
CompararOverview
| Aerospace Logic AOG Expedite Available, additional charges will apply.

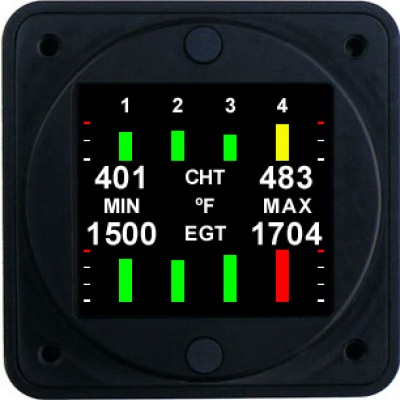

Four Cylinder EGT and CHT Combination Kit with Probes The ECT204 is a full color EGT and CHT combination instrument that provides simultaneous, real-time display of all four cylinders. This kit includes four Type-K ungrounded, EGT thermocouple probes of your choice, four Type-J ungrounded, CHT thermocouple probes of your choice and , all connectors and installation hardware. Both Cylinder head and Exhaust gas temperature functionality is TSO’d and meets the temperature accuracy requirements of SAE AS8005 for a Class IIa (+/- 1%) instrument. Functional displays include: Real-time four cylinder temperature display: |
| Peso | 0.11 lbs |
|---|---|
| Dimensões | 2.45 × 2.45 × .9 in |
| Brands |
Features
Certification / Compliance:
- TSO C43cCanadian STCFAA STCCertified as primary replacement
Software
- DO-178B
DC Power Source
- Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
Operating Temperature
- Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
Signal Input
- CHT – 0.0V to 20.255mV, ungrounded Type-J thermocoupleEGT – 0.0V to 44.866mV, ungrounded Type-K thermocouple
Display Temperature Range
- CHT – 100ºF to 700ºF EGT – 200ºF to 2000ºF
Accuracy
- Temperature SAE AS8005 Class IIa +/- 1% FS
Display Units
- ºF or ºC, user selectable
Display
- Sunlight readable LCD176 X 192 display pixels65,535 colors
Annunciator Output
- 100mA sink with reverse EMF protection
RS-232 Data
- Output 1 second per full sequence at 57.6K bps (8/N/2/N)
Interface Connector
- DB-25
Software Functionality
- Primary: All cylinders with Min and Max temperaturesMenu: Function selectionROP Leaning: Lean engine rich-of-peak (EGT)LOP Leaning: Lean engine lean-of-peak (EGT)Shock Cooling: User selectable rate (CHT)Single Cylinder: Display all cylinders, but monitor one (Both CHT and EGT simultaneously)Trend Graph: Graphic display of temperatures (CHT or EGT)
Specifications
- Dimensions: 2.45” X 2.45” X 0.9”
- Weight (excluding harness and probes): 4.05 oz
- Finish: Black anodized 6061 aluminum
