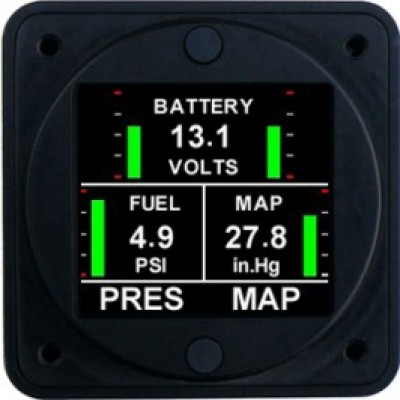

AEROSPACE LOGIC FUEL & MANIFOLD PRESSURE WITH VOLTMETER KIT
Part #: FM200VK
FM200VK
R$14,298.50
CompararOverview
| Aerospace Logic AOG Expedite Available, additional charges will apply.
The FM200 is an advanced, next generation fuel and manifold pressure combinational instrument. Fuel pressure functionality is TSO’d and meets the pressure accuracy requirements of SAE AS408C. Manifold pressure functionality is TSO’d and meets the pressure accuracy requirements of SAE AS8042. Instruments with a part numbers with a suffix “V” include an additional display screen with a full function voltmeter. Functional displays include:
|
| Peso | 0.11 lbs |
|---|---|
| Dimensões | 2.45 × 2.45 × .9 in |
| Brands |
Specifications
Certification / Compliance
TSO C47a and C45b
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure 0.5V to 3.0V
Display Units
Fuel Pressure: 0.0 PSI to 90.0 PSI
Manifold Pressure: 0.0 inHg to 50.0 inHg
Voltmeter: 6.0V to 36V
Accuracy
Fuel Pressure: AS408C +/- 0.25PSI
Manifold Pressure: AS8042 +/- 0.1inHg
Voltmeter: +/- 0.1V
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Fuel pressure, manifold pressure |
| Voltmeter: | Voltmeter, fuel pressure, manifold pressure |
| Trend Graph: | Graphic display of fuel and manifold pressure |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
