AEROSPACE LOGIC FUEL PRESSURE & AMMETER KIT
Part #: FA200K
FA200K
R$10,524.83
CompararOverview
| Aerospace Logic AOG Expedite Available, additional charges will apply.

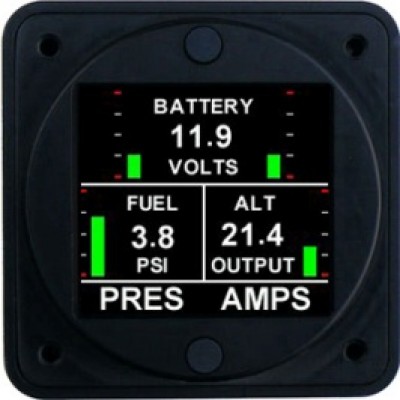

The FA200 is an advanced, next generation fuel pressure and ammeter combinational instrument. The ammeter portion of the instrument may be used as either a normal function ammeter or a loadmeter. This option is set during installation. Instruments with a part numbers with a suffix “V” include an additional display screen with a full function voltmeter. Fuel pressure functionality is TSO’d and meets the pressure accuracy requirements of SAE AS408C. Functional displays include:
|
| Peso | 0.11 lbs |
|---|---|
| Dimensões | 2.45 × 2.45 × .9 in |
| Brands |
Specifications
Certification / Compliance
TSO C47a
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Pressure 0.5V to 3.0V
Current 0.0V to 3.0V
Display Units
Pressure: 0.0 PSI to 90.0 PSI
Ammeter: +/- 100A
Accuracy
Pressure: AS408C +/- 0.25 PSI
Ammeter: +/- 0.1A
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality
| Primary: | Fuel pressure, current; charge or discharge |
| Trend Graph: | Graphic display of fuel pressure and current |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
