AEROSPACE LOGIC SINGLE MANIFOLD PRESSURE KIT

Part #: MP200K
Aerospace Logic

MP200K

R$8,867.03

Comparar

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

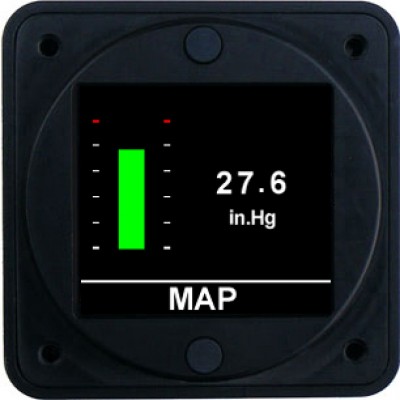

MP200K Single Manifold Pressure Kit

The MP200 is an advanced, next generation single manifold pressure instrument.

Manifold pressure functionality is TSO’d and meets the pressure accuracy requirements of SAE AS8042.

Functional displays include:
Real-Time analog data depiction and digital value display of manifold pressure
Graphical trend display of manifold pressure data
The MP200K is TSO’d and STC’d as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

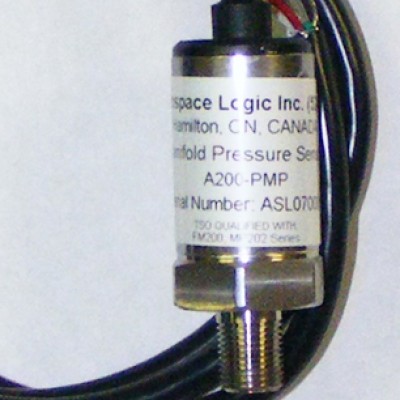

This kit includes a A200-PMP manifold pressure sensor and all installation hardware

Peso 0.11 lbs
Dimensões 2.45 × 2.45 × .96 in
Brands

Features

Certification / Compliance:

    TSO C44bCanadian STCFAA STCCertified as primary replacement

Software

    DO-178B

DC Power Source

    Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV

Operating Temperature

    Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC

Signal Input

    • Pressure 0.5V to 3.0V
    Fuel Flow: 5V pulse width modulated

Display Units

    • Manifold Pressure: 0.0 inHg to 50.0 inHg
    • Fuel Flow: 0.6 to 30gph
    Fuel Used: 0.6 to 999.9 gallons

Accuracy

    • Manifold Pressure: AS8042 +/- 0.1inHg
    Fuel Flow: +/- 0.1gph

Display

    Sunlight readable LCD176 X 192 display pixels65,535 colors

Annunciator Output

    100mA sink with reverse EMF protection

RS-232 Data

    Output 1 second per full sequence at 57.6K bps (8/N/2/N)

Interface Connector

    DB-25

Software Functionality

    • Primary Display: Fuel level in the tank
    • Trend Graph: Graphic display of level vs time

Specifications

  • Dimensions: 2.45” X 2.45” X 0.96”
  • Weight (excluding harness): 4.05 oz
  • Finish: Black anodized 6061 aluminum
