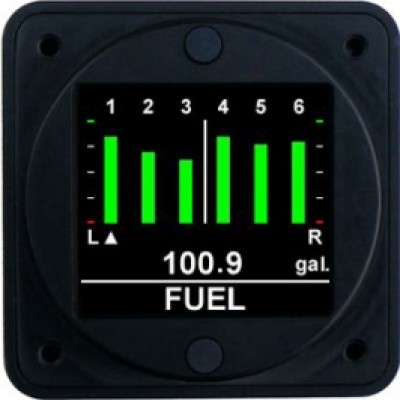

AEROSPACE LOGIC SIX FUEL LEVEL FOR CESSNA PENNYCAP SYSTEMS

Part #: FL216
Aerospace Logic

FL216

R$13,709.55

Comparar

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

The FL21X instruments are advanced, next generation airborne fuel level reporting instruments that support from two to six fuel tanks using the Cessna Pennycap fuel level system.

Fuel level functionality is TSO’d and meets the repeatable accuracy requirements of SAE AS405C, +/- 1US Gallon.

Functional displays include:

  • Graphical indication of fuel level in each tank
  • Selectable digital fuel quantity for each tank
  • Fully programmable color indication to meet all aircraft marking requirements
  • Graphical fuel level indication, starting at power on
Peso 0.11 lbs
Dimensões 2.45 × 2.45 × .9 in
Brands

Specifications

Certification / Compliance
TSO C55a
Canadian STC
FAA STC
Certified as primary replacement

Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX

Software
DO-178B

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC

Signal Input
DC Voltage 0v to 1.0v

Sender Orientation
User selectable, proportional or inversely proportional to fuel quantity

Accuracy
AS405C +/- 1 USG

Display Units
US Gallons or Litres, user selectable

Range
0 to 120 USG (defined by fuel sender/tank size)

Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control

Annunciator Output
100mA sink with reverse EMF protection

Interface Connector
DB-25

Software Functionality
Primary Display: Fuel level in all tanks
Trend Graph: Graphic display of level vs time

Dimensions
2.45” X 2.45” X 0.9”

Weight (excluding harness)
4.05 oz

Finish
Black anodized 6061 aluminum
