Alcor, Avionics & Instruments, Instruments, Probes And Senders

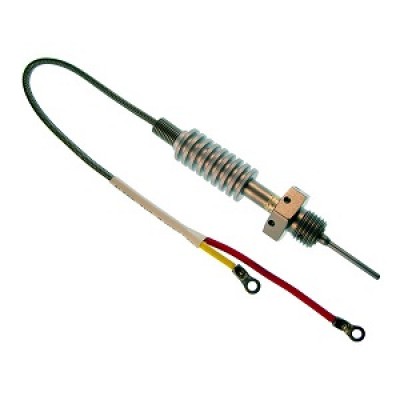

ALCOR BY TEMPEST EGT / TIT PROBE GROUNDED TYPE K 7/16
Part #: 86160
86160
R$1,760.77
CompararOverview
| Alcor EGT/TIT Probe Grounded, .70 OHM, Type K 7/16. PMA/FAA approved. |
| Peso | 0.05 lbs |
|---|---|
| Dimensões | 8.38 × 5.88 × 1 in |
| Brands |
Features
- Backed by an industry leading 5 year warranty
- Small element diameter provides for near instantaneous instrument response
- Provides sufficient electrical power for Alcor unamplified instruments
- Built in radiator minimizes the high temperature effects on internal spotweld connections
- Intended for use with Type K EGT or TIT instruments and leads
- Lead wires are configured in reverse stagger (long red and short yellow)
- Accurate to ± 25 degrees at 1500 degrees Fahrenheit
- PMA and FAA approved for all reciprocating powered aircraft
- Alcor probes are designed, manufactured, and supported in the U.S.A.
Specifications
- Type: K – Red and Yellow
- Grounded
- Style: Screw-In
- Size: 7/16”-20
- Resistance: .70 ± .10 Ohm
- Weight: 0.12 lbs
- Alcor P/N: 86160
