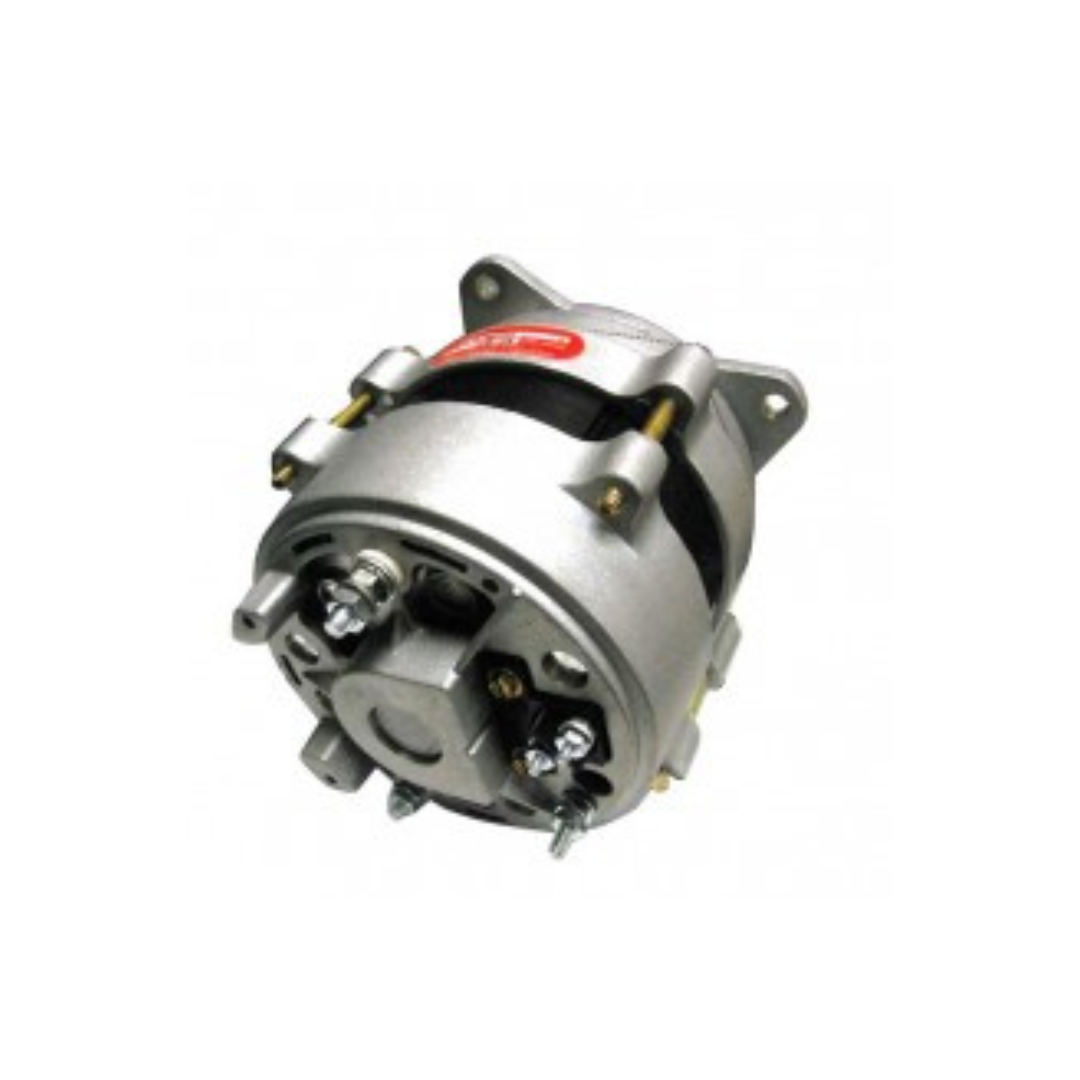

ALV-9610 Plane Power 24V/100A GD Alternator Assy Replaces – ALV-9510, CMG 646491, 649304

Part #: ALV-9610
Plane-Power
Adicionar a lista de desejo
Comparar

ALV9610

Comparar

Overview

ES SERIES: ES Series were internally developed by Plane-Power to provide customized solutions for OEM applications as well as new PMA approved alternatives to Ford, Chrysler and CMI/Crittenden units. ES Series aircraft alternators are OEM on a range of general aviation applications, including piston, single-engine turboprops and single-engine light jets. In addition, light weight/high power density ES Series alternators are seeing extensive use on UAV applications.
Part: ALV-9610 Categorias: , , , Tags: ,
Peso 6.57 lbs
Dimensões 11.25 × 11.25 × 9.5 in
Brands

Make

Cessna, Piper
Model

340, PA-31

Application

MODEL VOLTS/AMPS DRIVE TYPE OP. SPEED / RPM LBS. REPLACES
ALV-9610
 28V-100A Gear Drive 2,400-10,000 rpm 12lb 12oz. Continental (fr.TCM)
646491, 649304,
ALV-9510
While the alternators listed are direct replacements for existing aircraft installations,
there is no guarantee Hartzell recommendations are absolute due to unforeseen variations,
modifications, and/or manufacturer changes to an aircraft/rotorcraft or engine over the years.

Specifications

  • 28 Volt / 100 Amp Prestolite Style
  • Max Continuous Oper. Speed: 10000 rpm
  • Type Drive: Gear
  • Min. Speed for Regulation: 2400 rpm
  • Max. Operating Altitude: 35000 rpm
  • Weight: 12 lbs.
  • Rotation: Bi-Directional
  • Replaces TCM part numbers: 642056, 646491, 646842, 649304, as well as ALV-9510.

Features

  • Up to 9.6 lbs. weight savings (per engine)
  • OEM Direct Replacement
  • More power at engine cruise
  • Built in noise cancellation
  • Rugged design for extreme conditions
  • More economical than overhauled units
  • Two year warranty

Documents

Service Bulletin (PDF)

Drawing (PDF)
