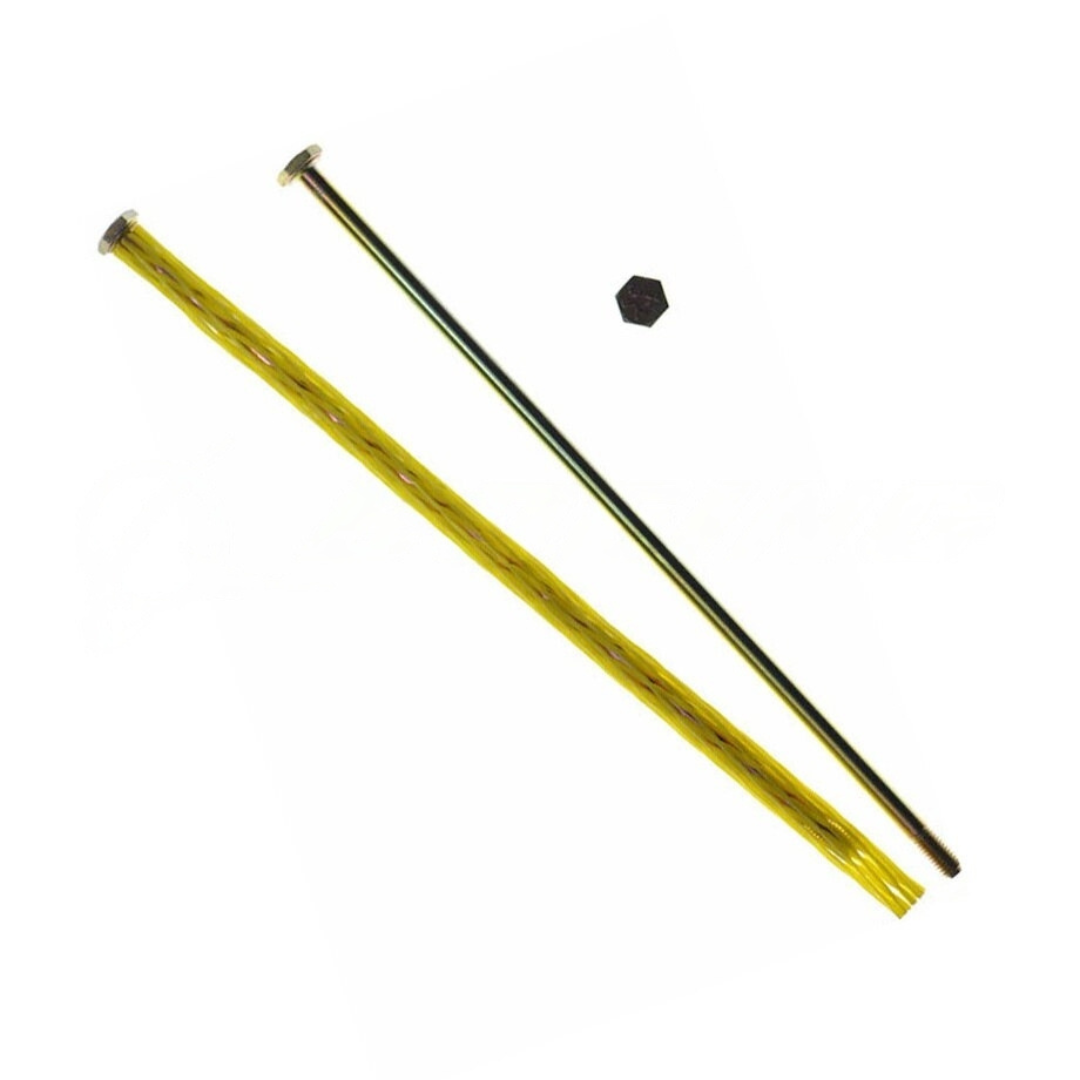

AN3-71A Undrilled Shank Machine Bolt

Specifications

• Diameter: #10
• Dash Number: 71
• Thread Length: 0.406 in
• Length: 7-5/32 in
• Thread Type: UNF
• Head Diameter: 0.43 in
• Head Height: 0.109 to 0.141 in
• Head Type: Hexagonal
• Thread Size: #10-32
• Material: Alloy Steel
• Grip Size: 6-3/4 in
• Finish: Cadmium
• Thread Class: 3A
• Thread Direction: Right Hand
• Tensile Strength: 2.21 lb Steel, 1.1 lb Alloy
• Shear Strength: 2.125 lb Steel, 0.99 lb Alloy
• Grade: 4037/8740
• Suitable for Use With: Fixed Wing Aircraft
• Domestic/Import: Domestic

TECHNICAL INFORMATION
• FAA-STD Approved
