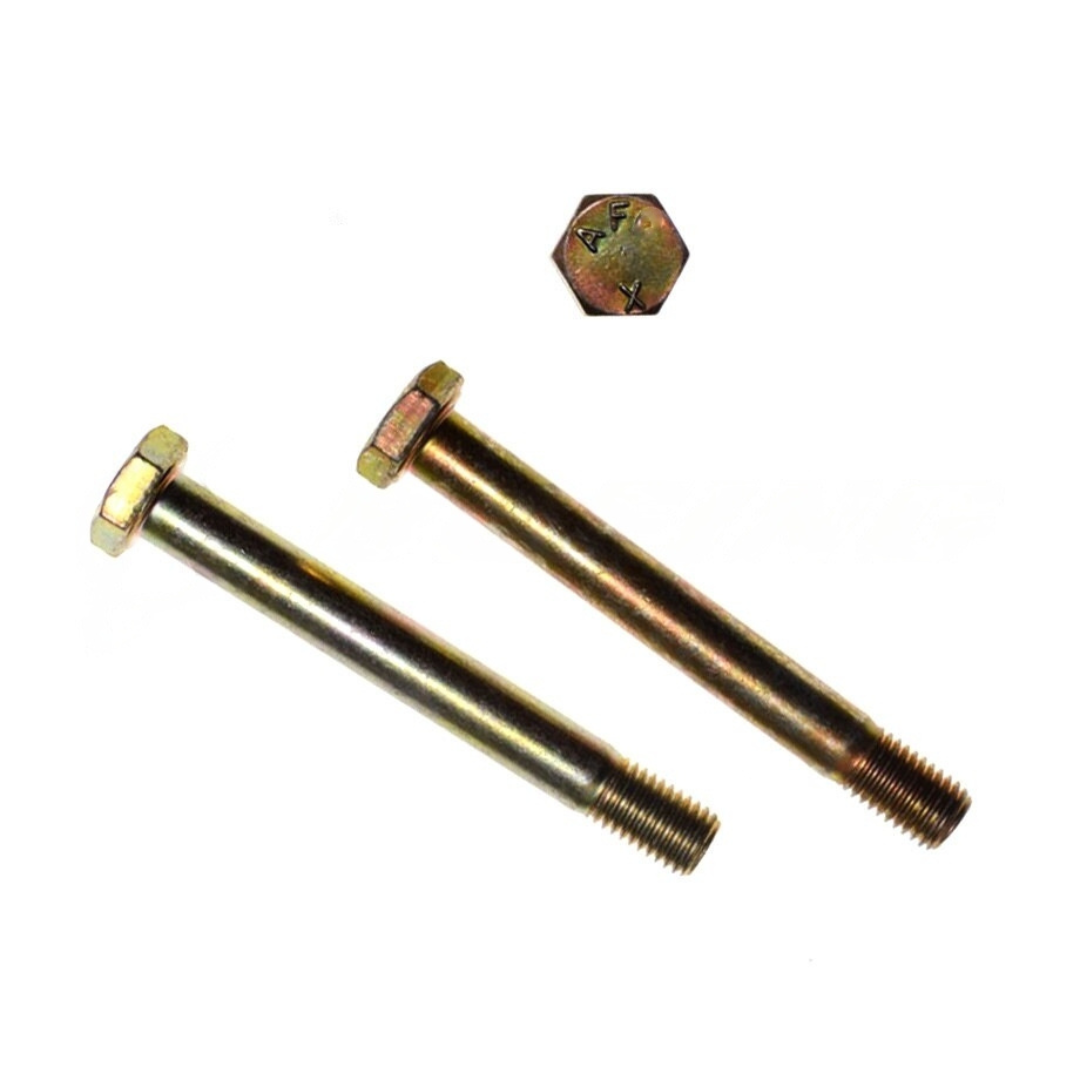

AN5-24A Aircraft Bolt

Specifications

• Series: AN5
• Diameter: 0.312 to 0.309 in
• Thread Length: 0.531 in
• Thread Type: UNF
• Head Diameter: 0.58 in
• Head Height: 0.172 to 0.204 in
• Head Type: Hexagonal
• Thread Size: 5/16-24
• Grip Size: 2.063 in
• Material: Alloy Steel
• Thread Class: 3A
• Finish: Yellow Cadmium-Plated
• Thread Direction: Right Hand
• Tensile Strength: 6500 lb
• Shear Strength: 5750 lb
• Grade: 4037 or 8740
• Locking Mechanism: Undrilled Shank
• Length: 2.594 in
• Weight: 0.064 lb
• Domestic/Import: Domestic
