MI585224 ANTENNA-FLANGE UP

Part #: MI585224

Call for price

Comparar

Overview

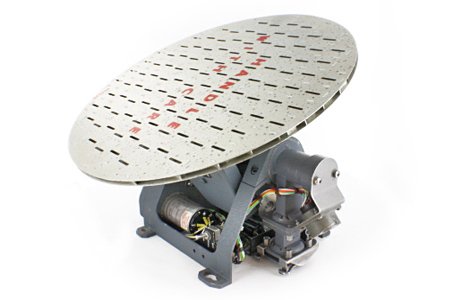

  • Radar antenna pedestal used in Primus 300SL Radar System
  • Normally equipped with 12″ flat-plate phased array but 18″ flat-plate also available
  • Switch provided to stop antenna scanning during testing
  • Provides line-of-sight stabilization
  • Pedestal configuration available with waveguide mating flange and main connector on upper side of pedestal (see table in specifications)
  • Pedestal available with flange and connector on bottom of pedestal (see table in specifications)
  • Models available with either +-25 or +-30 degree stabilization (see table in specifications)
Part: MI585224 Categoria: Tag:
Peso 3.36 lbs
Dimensões 9.17 × 9.06 × 5.438 in

CONDITION:  AS REMOVED (AR)

SPECIFICATIONS

DIMENSIONS: 9.17″W x 9.06″H x 5.438″D (figures do not include flat plate) WEIGHT: 7.4
TSO: Category D2AJXXXXXXXABBBB, Class 7
