ARTEX 406 MHZ ELT 1000 BASE PACK

Part #: 8202, 8203, 8204, 8203INT, 8204INT
Artex

8202, 8203, 8204, 8203INT, 8204INT

Comparar

Overview

The ARTEX ELT 1000 is a value-priced upgrade to standard 121.5 MHz transmitters, which are no longer monitored by the Cospas-Sarsat system. The 406 MHz transmitter produces a much more accurate position, typically 3 kilometers as compared with 15 to 20 kilometers for 121.5 MHz transmitters. When coupled to the aircraft navigation system via a navigation interface, the ELT 1000’s accuracy improves to approximately 100 meters.
Part: 8202, 8203, 8204, 8203INT, 8204INT Categorias: , , , Tags: , ,
Peso Não aplicável
Dimensões Não aplicável
Brands

Select Antenna:

Without Antenna, With Whip Antenna, With Rod Antenna

Select Model:

USA, International

Specifications

  • Model: ELT 1000
  • Antenna Options Available: Rod: 110-338 or 8603 or Whip: 110-773
  • Operating Frequencies: 406 MHz, 121.5 MHz +/- 5 KHz, GPS Interface
  • GPS: Built-in GPS Navigational Interface
  • Output Power: 406 MHz: 5 W (440 ms/ 50 sec) for 24 hours @ -20°C to +55°C, 121.5 MHz: 100 mW minimum for 50 hours @ -20°C to +55°C
  • Output Connector: BNC Female (406 MHz; 121.5 MHz)
  • Activation: Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
  • Battery: 6 year Lithium (LiSO2)
  • Temperature Certified to: Operating: -20°C to +55°C, Storage: -55°C to +85°C
  • Self Test: G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Low Battery
  • Remote Control: ON/ARM/TEST

In The Box

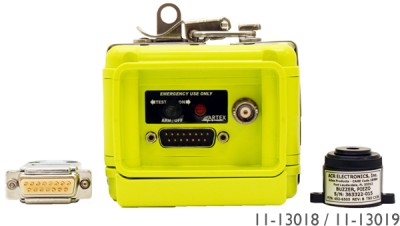

  • Unit without Antenna: ELT base pack, 406 MHz ELT, installation hardware, audio buzzer and mount tray. No remote switch included.

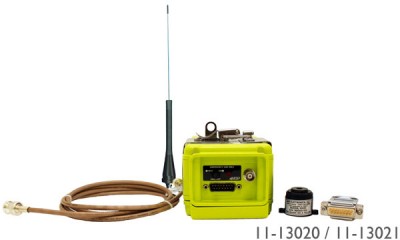

  • Unit with Whip Antenna: ELT base pack, 406 MHz ELT with whip antenna, remote switch, installation kit, audio buzzer, and connectors.
  • Unit with Rod Antenna: ELT base pack, 406 MHz ELT with rod antenna, remote switch, installation kit, audio buzzer, and connectors.
