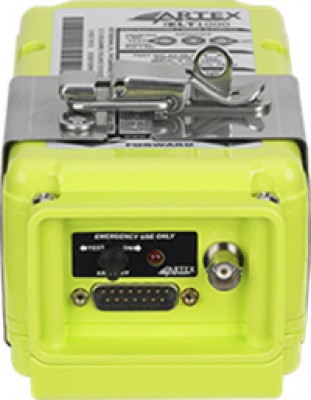

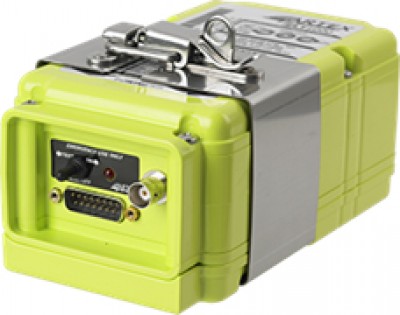

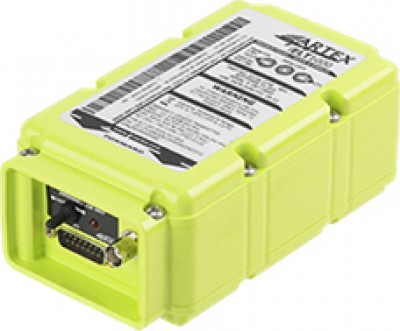

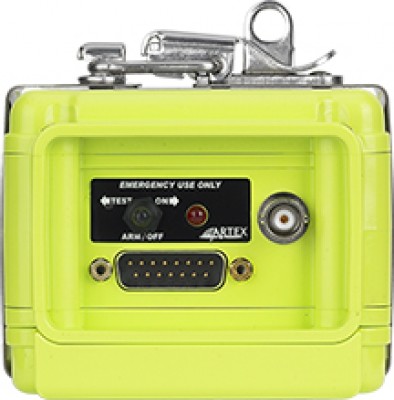

ARTEX ELT 1000 ACE BASE PACK
Part #: 8206
Availability:
Disponível por encomenda
8206
Comparar
Overview
| The ARTEX ELT 1000 is a value-priced upgrade to standard 121.5 MHz transmitters, which are no longer monitored by the Cospas-Sarsat system. The 406 MHz transmitter produces a much more accurate position, typically 3 kilometers as compared with 15 to 20 kilometers for 121.5 MHz transmitters. When coupled to the aircraft navigation system via a navigation interface, the ELT 1000’s accuracy improves to approximately 100 meters. |
| Peso | 1.79 lbs |
|---|---|
| Dimensões | 19.5 × 6 × 6 in |
| Select Region: | USA, International |
| Select Antenna: | Whip Antenna |
| Brands |
Specifications
- Model: ELT 1000

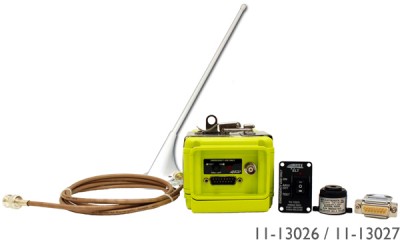

- Antenna Options Available: Rod: 110-338 or 8603 or Whip: 110-773
- Operating Frequencies: 406 MHz, 121.5 MHz +/- 5 KHz, GPS Interface
- GPS: Built-in GPS Navigational Interface
- Output Power: 406 MHz: 5 W (440 ms/ 50 sec) for 24 hours @ -20°C to +55°C, 121.5 MHz: 100 mW minimum for 50 hours @ -20°C to +55°C
- Output Connector: BNC Female (406 MHz; 121.5 MHz)
- Activation: Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
- Battery: 6 year Lithium (LiSO2)
- Temperature Certified to: Operating: -20°C to +55°C, Storage: -55°C to +85°C
- Self Test: G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Low Battery
- Remote Control: ON/ARM/TEST.
