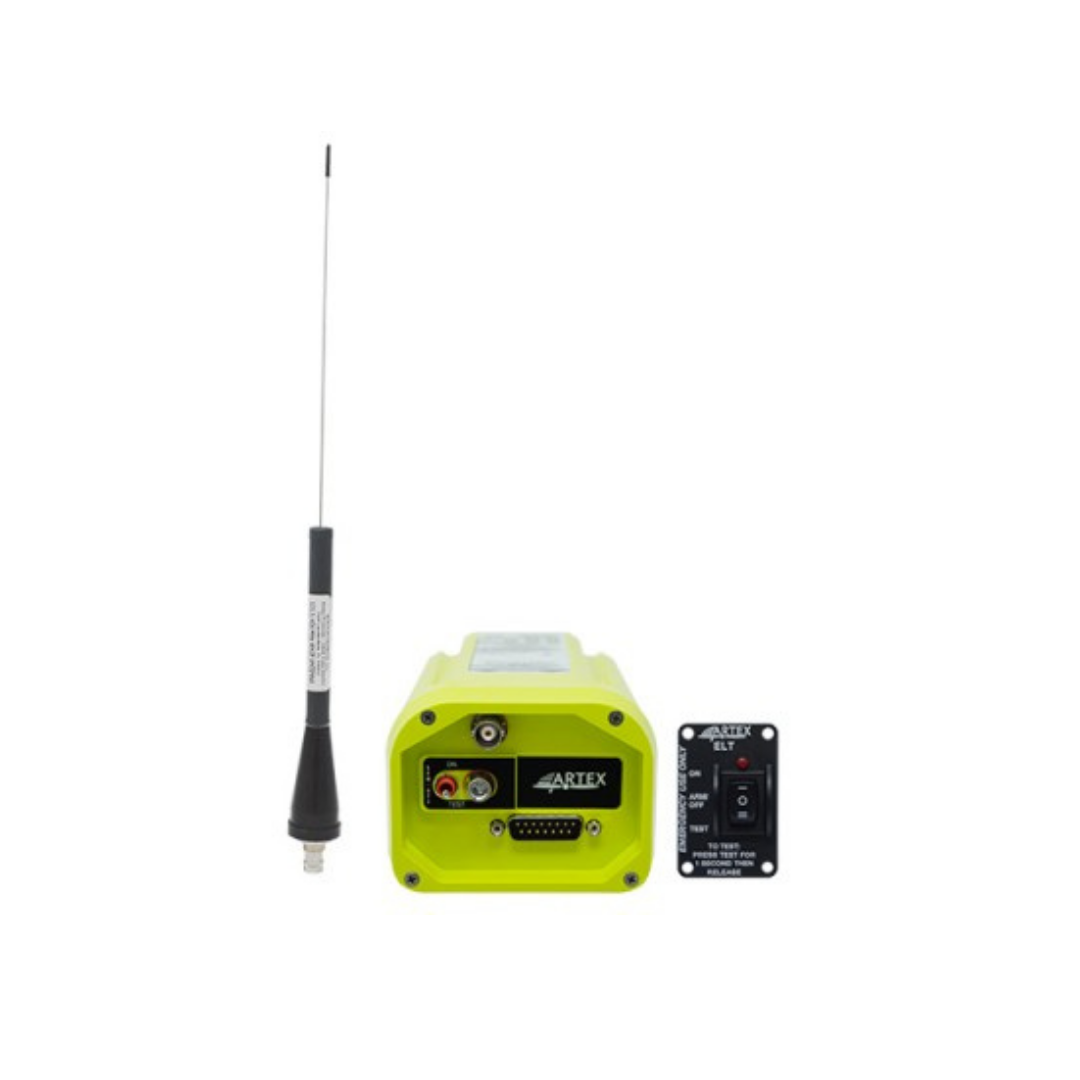

ARTEX ELT 345 GPS / 406 / 121.5 COMPACT KIT WITH 15 INCH WHIP ANTENNA – FAA TSO
Part #: 8107
Disponível por encomenda
Comparar
Overview
| The ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies and can provide position accuracy with an optional GPS input thanks to the built-in GPS navigational interface. GPS data is embedded from the first emergency transmission and provides Search and Rescue personnel with the aircraft location, within 100 meters, in less than a minute.
This unit can be activated manually with (remote switch or ELT switch) or automatically (the G-switch detects a 2.3G or greater impact). Once activated, the ELT 345 transmits a 406 MHz signal with the beacon’s unique registration information and embedded GPS coordinates to the closest search and rescue agency via the Cospas-Sarsat satellite system. The beacon also transmits a 121.5 MHz homing signal to assist search and rescue to pinpoint the aircraft’s GPS location. The ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options. The ELT utilizes the same RF output using only one coax cable to transmit both 406 MHz and 121.5 MHz signals through the compact 15-inch whip antenna. The ELT’s built-in navigational interface does not require aircraft power to operate—which results in lower installation costs—and the stainless steel mounting bracket supplied with the unit has a multiple hole mounting pattern to accommodate legacy footprints. FAA TSO C126b approved. |
| Peso | Não aplicável |
|---|---|
| Brands | |
| Select Model: | USA, International |
Specifications
|
Model:
|
ELT 345 |
|---|---|
|
Product Number:
|
8107 |
|
Operating Frequencies:
|
406.040 MHz (+/- 1kHz) – Emission Designator 16K0G1D / 121.5 MHz (+/- 6.075 kHz) – Emission Designator 3K20A3X |
|
Output Power:
|
406 MHz: 5 W for 24 hours @ -20°C to +55°C, 121.5 MHz: 50 mW for 50 hours @ -20°C to +55°C |
|
Output Connector:
|
BNC Female |
|
GPS:
|
Built-in GPS Navigational Interface (NMEA 0183 or RS 232) |
|
Activation:
|
Automatic via G-Switch by 4.5 ft/sec (2.3 G) or Manual Activation |
|
Battery:
|
6 year Lithium (LiMnO2), Replacement Battery Part No. 8322 |
|
Temperature Certified to:
|
Operating: -20°C to +55°C, Storage: -55°C to +85°C |
|
Self Test Checks:
|
G-Switch Enabled, 406 MHz and 121.5 MHz Power, NAV system, Low Battery |
|
Remote Control:
|
ON/ARM/TEST |
|
Weight (with tray):
|
2.0 lbs (907.19 g) |
|
Measurements:
|
ELT Transmitter with mounting hardware installed: 6.40 (L) x 2.96 (H) x 3.78” (W) inches (16.26 x 7.52 x 9.60 cm) |
|
Approvals:
|
Cospas-Sarsat, FAA TSO, Industry Canada |
|
Antenna:
|
Black Whip Antenna |
|
Mounting Tray and Strap:
|
P/N: 8323 (Universal mounting hole pattern fits 90% of existing ELT hole configurations) |
