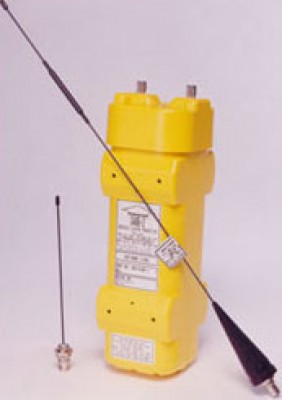

ARTEX G406-4 ELT WITH WHIP ANTENNA
Part #: 455-5044
4555044
Comparar
Overview
| The Artex G406-4 transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. The G406-4 also transmits a 406.025 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time. The G406-4 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The G406-4 is available for use with Artex’s low cost whip antennas or a sturdy fiberglass rod antenna. The G406-4 also may be interfaced with the Artex ELT/NAV Interface which enables latitude and longitude data to be transmitted as part of the 406.025 MHz message. The G406-4 is value priced to meet your ELT needs. |
| Peso | 2.27 lbs |
|---|---|
| Dimensões | 7 × 20 × 7 in |
| Select Model: | For USA, For International |
| Brands |
Specifications
- Operating Frequencies: 406.025 MHz ± 2 kHz Biphase L (16K0G1D) 121.5 & 243.0 MHz ± 0.005% (A3X)
- Output Power: 406 MHz; 5 W ± 2 dB (520 ms / 50 sec) for 24 hours @ -20º C, 121.5/243.0 MHz: 100 mW min (+20 dBm for 50 hours @ -20º C)
- Output connector: BNC Female (121.5/243 MHz); TPS Female (406 MHz)
- Activation: Automatic by 4.5 ft/sec G-Switch or Manual
- Battery: 5 year Lithium (LiMnO2, solid cathode)
- Operating Temperature: -20º C to +55º C
- Storage Temperature: -55º C to +85º C
- Self Test: G-Switch enabled, 406 MHz Power, Antenna/Coax Connection, Position Data Present, Low Battery
- Remote Control: ON/OFF/RESET
- Antenna: Rod (110-320) (<350 KTS)
- Whip Antenna Configuration requires use of 2 antennas: Whip (110-324) (121.5/243 MHz <250 KTS) and Whip (110-329) (406 MHz<250 KTS)
- Mounting Hardware: Mounting Tray 452-3074, Protective Top Cover P/N 452-3073, End Cap P/N 452-3072
- Other Parts: Coax cables, Buzzer (to alert ground crews of accidental activation)
- ELT Transmitter Weight: 3 LB 5.8 oz Max (1.53 Kg)
- Mounting Tray Weight: 7 oz (200 g)
- Protective Top Cover Weight: 6.7 oz (190 g)
