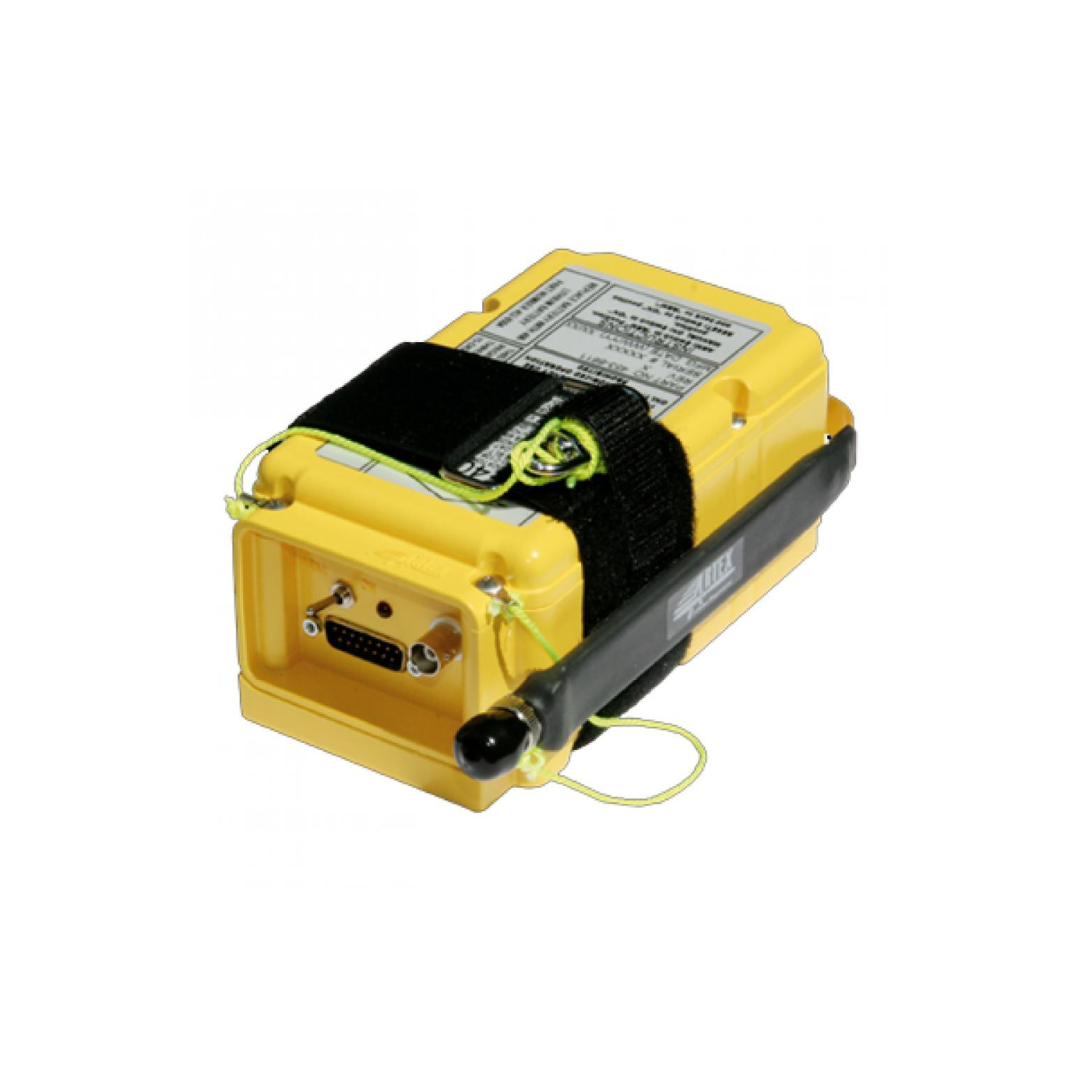

ARTEX ME406/P ELT WITH ROD ANTENNA
Part #: 455-6613, 455-6613-INT
Availability:
Disponível por encomenda
4556613
4556613INT
Comparar
Overview
| A single-output ELT, the Artex ME406P utilizes the same RF output and only one coax cable connected to the new series of Artex single input aerial antennas to transmit 121.5 and 406 MHz emergency signals to the COSPAS/SARSAT satellites. The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 MHz. Every 50 seconds for 440 milliseconds the 406 MHz transmitter turns on and sends an encoded 5 watt signal to alert search and rescue. The mounting tray of the ME406 series ELT is compatible with all previous models of Artex 406 MHz, as well as the ELT200 series, Pointer Model 3000, Narco ELTs and for the ACK E-01 ELT. A wrap-around auxiliary antenna attached to the fixed mounted ELT allows continued transmission of the distress signal after the removal of the ELT from a downed aircraft.While search and rescue authorities discourage wandering away from an aircraft wreck as it makes visual detection from the air much easier, circumstances (bad weather conditions, location of aircraft shielded by steep canyon walls or high mountains) may require a move to a more protected or accessible area. A lanyard connected to the ME406P allows the user to secure the ELT to a person or object in order to avoid loss or potential damage to the unit. The ME406P offers the advantage of automatic activation by G-Switch combined with portability for total peace of mind. |
| Peso | 1.36 lbs |
|---|---|
| Brands | |
| Select Model: | For USA, For International |
Specifications
- Operating Frequencies: 406 MHz ± 1 kHz Biphase L (16K0G1D)121.5 MHz ± 6 KHz (3K20A3X)
- Output Power: 406 MHz: 5 W (440 ms / 50 sec) for 24 hours @ -20° C to +55° C 121.5 MHz: 100 mW min for 50 hours @ -20° C to +55° C
- Output Connector: BNC Female
- Activation: Automatic by 4.5 ft/sec (2.3 G) Primary G-Switch &12.5 G (+/- 1 G) 5-Way HMG-Switch Assembly or Manual
- Battery: 5 year Lithium (LiMnO2)
- Operating Teperature: -20° C to +55° C
- Storage Temperature: -55° C to +85° C
- Self Test: G-Switch enabled, 406 MHz Power, 121.5 MHz Power, Antenna/Coax, Connection, Low Battery
- Remote Control: ON/ARM/RESET
- Antenna: Rod (110-338) (<350 kts), Auxiliary (110-775)
- Mounting Tray P/N 452-3075 (Included in the box, attached to the unit when removed from the box)
- ELT Transmitter Weight: 1.98 lbs (900 g)
- Mounting Tray Weight: 3.52 oz (100 g)
- Total Weight: 2.20 lbs (1000 g)
- Auxilliary Antenna Weight: 2.2 oz (65 g)
- ELT Transmitter with Mounting Hardware Installed Measurement: 6.59″ (167 mm) L x 2.86″ (73 mm) H x 3.69″ (94 mm) W
