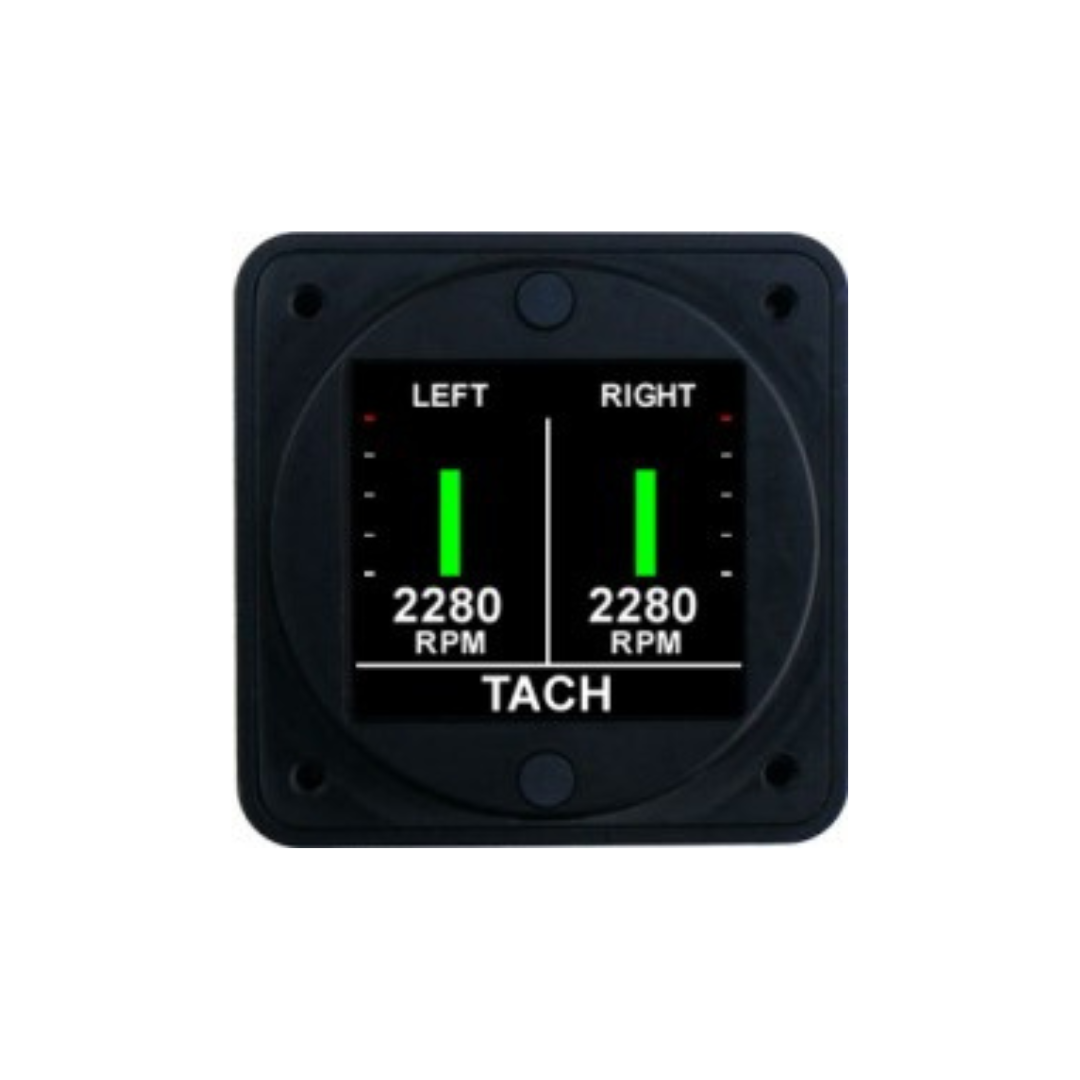

ASL DUAL TACHOMETER KIT BENDIX DUAL MAG
Part #: TM202R
TM202R
Call for price
CompararOverview
| Aerospace Logic AOG Expedite Available, additional charges will apply.
The TM202 is a precision dual tachometer that provides RPM data accurate to +/- 1RPM. It meets all the requirements of TSOC49b and provides the following functionality: The instrument will work on all 4, 6 and 8 cylinder aircraft engines. |
| Peso | 0.11 lbs |
|---|---|
| Dimensões | 2.45 × 2.45 × .96 in |
| Brands |
Features
Certification / Compliance:
- TSO C44bCanadian STCFAA STCCertified as primary replacement
Software
- DO-178B
DC Power Source
- Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
Operating Temperature
- Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
Signal Input
- 0-5V pulse width modulated square wave
Display Range
- RPM 0 – 9000
Accuracy
- AS404C +/- 1 RPM
Display
- Sunlight readable LCD176 X 192 display pixels65,535 colors
Annunciator Output
- 100mA sink with reverse EMF protection
RS-232 Data
- Output 1 second per full sequence at 57.6K bps (8/N/2/N)
Interface Connector
- DB-25
Software Functionality
-
- Primary: Manifold pressure and Tachometer
-
- Trend Graph: Graphic display of manifold pressure and tachometer data
-
- Engine Time: Display of engine time. Start time set at install
Specifications
- Dimensions: 2.45” X 2.45” X 0.96”
- Weight (excluding harness): 4.05 oz
- Finish: Black anodized 6061 aluminum
