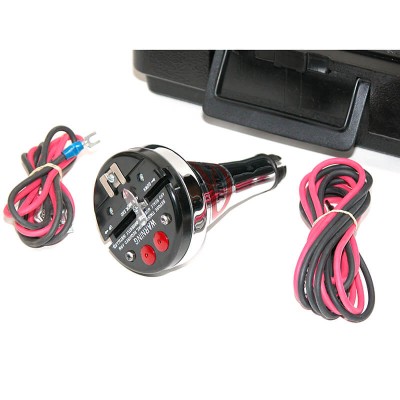

ATS TIME-RITE® COMPLETE KIT – 14MM ENGINES

Engine Information

• Install Time-Rite in the spark plug hole of the timing cylinder and turn the engine through one complete cycle which leaves the slide pointer at the highest piston travel point, permitting alignment of the zero degree position on the calibrated scale with the slide pointer.
• Timing degree positions measured from the zero degree scale mark represent angular, crankshaft positions relative to true top dead center as obtained by methods using a pointer and protractor on the crankshaft.

In The Box

• One 14mm Time-Rite unit
• A complete set of scales for 14mm engines
• A complete set of arms for 14mm engines
• An instruction manual
• A fitted case
