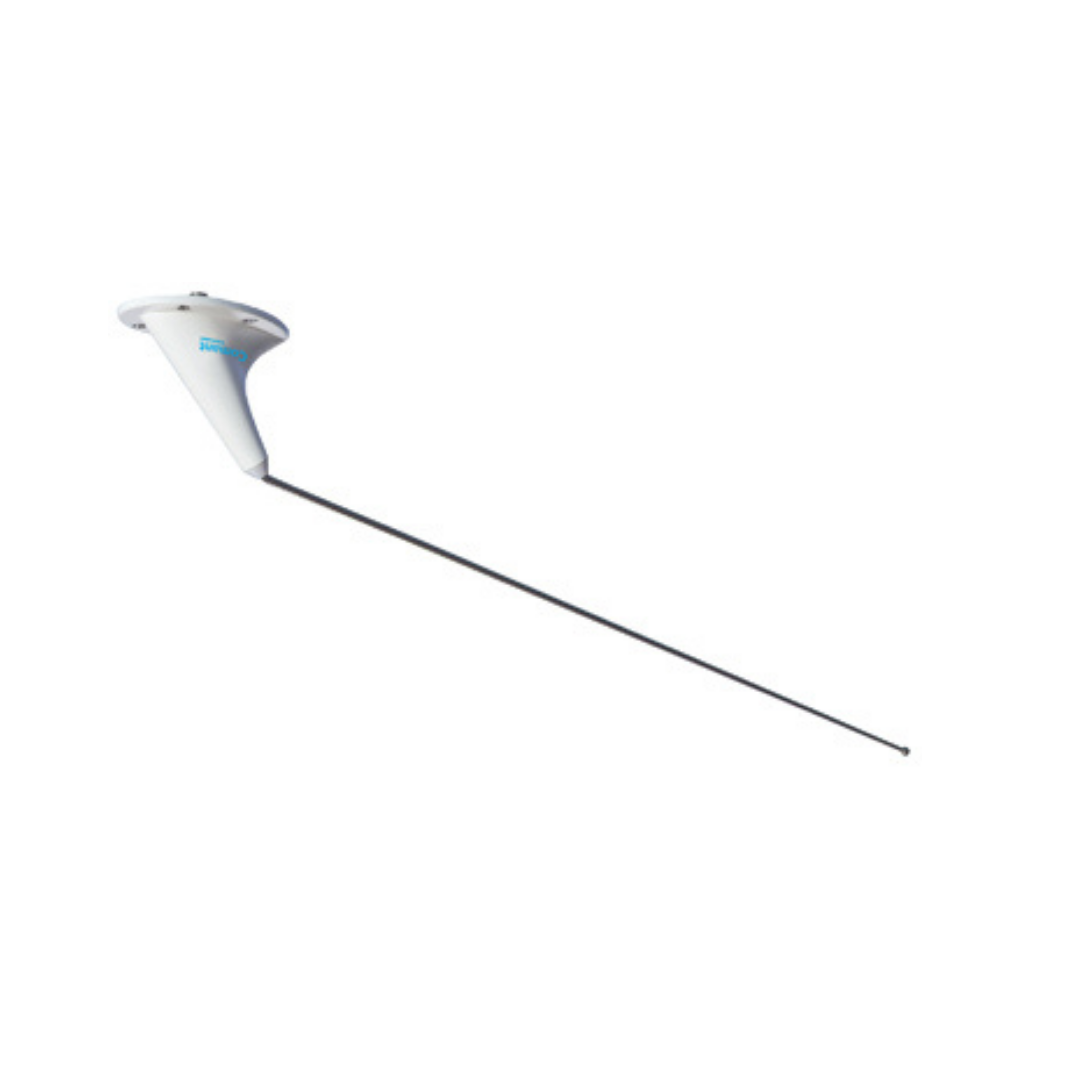

COMANT AM/ FM RECIEVER (CI-222)
Part #: CI-222
CI222
R$4,708.91
CompararOverview
|
Frequency 88-108 MHz 550-1600 KHz AM/FM receive antenna offers a unique low profile design using standard 4 hole mounting used on many VHF type antennas. Bent whip configuration is ideally suited for underbelly and helicopter installations. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
| Peso | 0.23 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 222 AM/ FM ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
88-108 MHz & 550-1600 KHz
|
|
VSWR
|
3.5:1 Maximum @ 98 MHz Mid-band
3.0:1 Maximum @ 88 & 108 Edges |
|
Polarization
|
Slant/Liner
|
|
Radiation Pattern
|
Omnidirectional- Receive Only |
|
Impedance
|
50 Ohms
|
|
Resistance DC
|
Open circuit
|
|
Power RF
|
50 Watts
|
|
Mechanical
|
|
|
Weight
|
0.5 lb. Maximum
|
|
Height
|
5.5 in. Maximum
|
|
Finish
|
White Polyurethane Enamel
|
|
Material
|
Cast Zinc Housing/ Stainless Whip
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Air Speed
|
450 Knots TAS at 25,000 ft.
|
