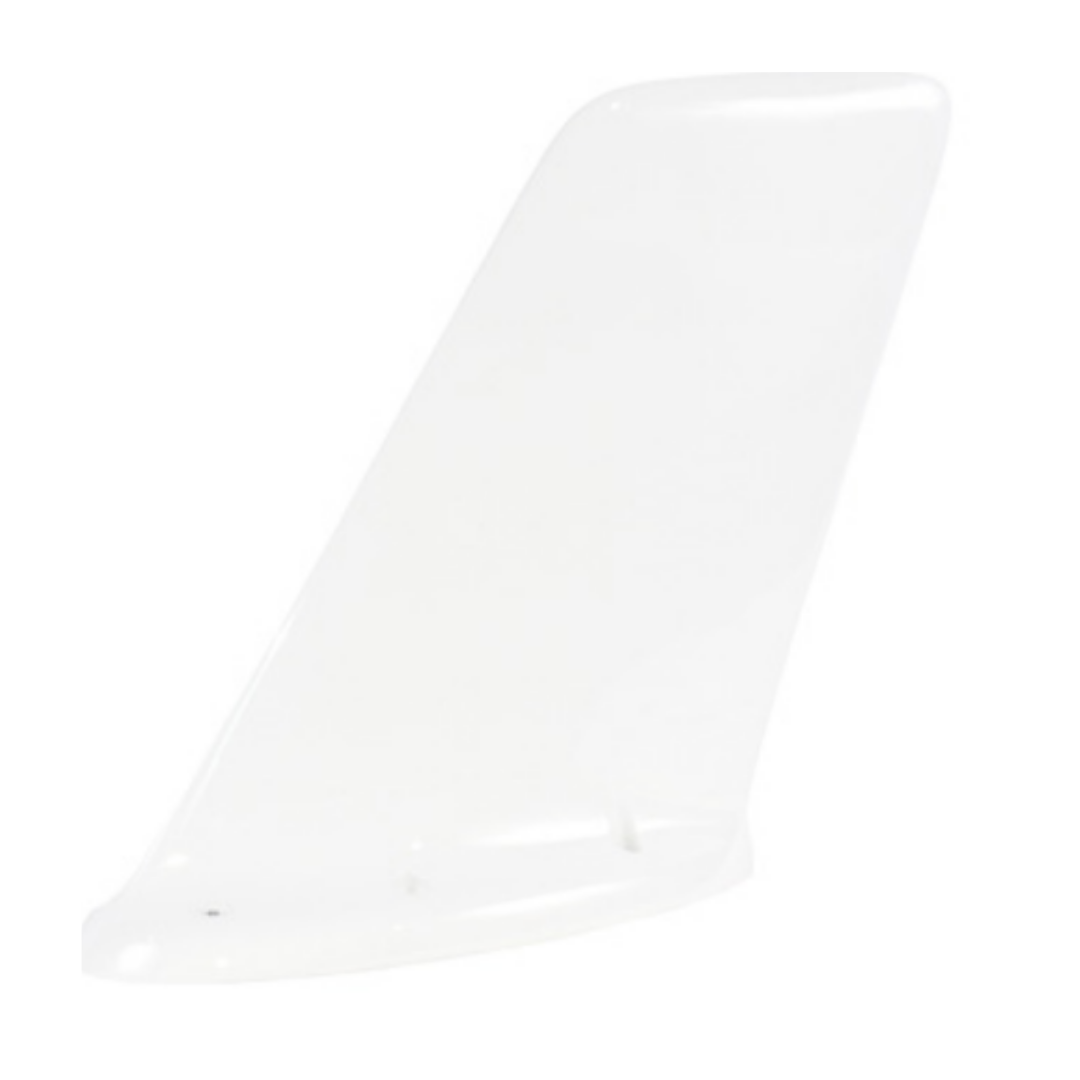

COMANT CI-108-1-L VHF BLADE ANTENNA WITH LEADING EDGE BNC
Part #: CI-108-1-L
CI1081L
R$16,416.19
CompararOverview
| Designed for world-wide service where VHF communication is available over a wider band. Suitable for either top or bottom mounting. Solid polyurethane construction. White polyurethane finish is Skydrol and rain erosion resistant.
The CI 108-1 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
| Peso | 1.36 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 108-1 VHF BLADE ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
108-153 MHz |
|
VSWR
|
2.5:1
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms
|
|
Power
|
25 Watts |
|
Mechanical
|
|
|
Weight
|
2.5 lb Maximum
|
|
Height
|
12.0 in. Maximum
|
|
Material
|
High Density Polyurethane |
|
Finish
|
Polyurehtane Enamel
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Temperature
|
-55ºC to + 85ºC
|
|
Altitude
|
50,000 ft.
|
|
Air Speed
|
600 Knots TAS @ 35,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160
|
|
FAA TSO
|
C37d, C38d
|
|
RTCA MOPS
|
DO-186A
|
|
Gasket
|
|
|
C10810
|
Cork Neoprene – Standard
|
