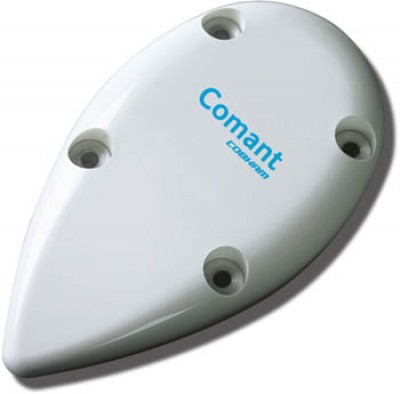

COMANT COMDAT GPS ANTENNA (CI-420-221)
Part #: CI-420-221
CI420221
R$4,508.95
CompararOverview
|
Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the popular teardrop footprint found on many general aviation aircraft and business jets. Meets RTCA DO 160D operating standards including direct effects lightning. Designed to operate with Garmin 17.0 dB panel mount GPSreceivers. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Not compatible with most portable GPS receiver systems. Applications Frequencies Covered |
| Peso | 0.12 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 420-221
|
|
|
GPS Preamplifier Characteristics
|
|
|
Frequency
|
1575.42 +/- 3 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
RHCP
|
|
Radiation Pattern
|
Hemispherical
|
|
Impedance
|
50 Ohms
|
|
Gain @ 1575.42 MHz
|
17 +/-3 dB
|
|
DC Voltage
|
4 to 24 Volts
|
|
DC Current Min/ Max
|
20 mA Maximum
|
|
Noise Figure
|
3.8 dB
|
|
Selectivity
|
-35 dB Min. @ Satcom 1626.5 MHz
|
|
Mechanical / Environmental
|
|
|
Weight
|
4.2 Ounces
|
|
RTCA Env. / TSO
|
DO 160D / C 144
|
|
Connector
|
TNC (Female)
|
