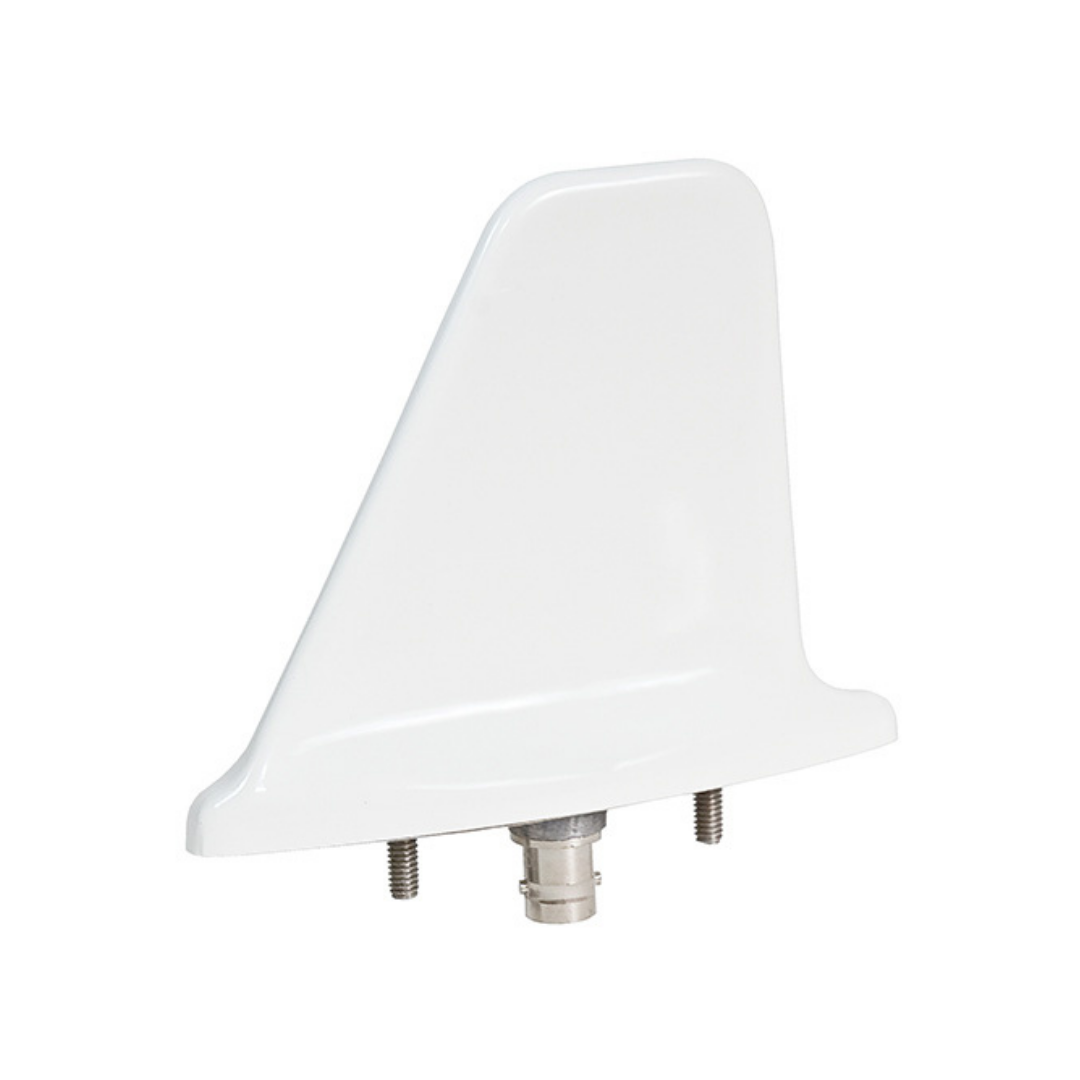

COMANT DME / TRANSPONDER ANTENNA CI-105 FAA-TSO
Part #: CI-105
CI105
Comparar
PNs Alternativos
- PN: AV-74 - View
Overview
| Broadband and rugged antenna designed for DME or transponder use. Antenna assembly encased in a glass reinforced polyester molded shell. Standard two stud mounting configuration. |
| Peso | 0.11 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 105 DME / TRANSPONDER
|
|
|
Electrical
|
|
|
Frequency
|
960 to 1220 MHz
|
|
VSWR |
1.5:1 960 to 1220 MHz
1.3:1 1030 to 1090 MHz |
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Equivalent to 1/4 wave stub
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
Open Circuit
|
|
PowerRF
|
2.5 KW Peak
|
|
Mechanical
|
|
|
Weight
|
0.24 lb. Maximum |
|
Height
|
3.23 in. Maximum
|
|
Material
|
Molded Radome
|
|
Finish
|
Polyurethane Enamel
|
|
Environmental
|
|
|
Temperature
|
-54ºC to +55ºC
|
|
Altitude
|
70,000 ft.
|
|
Air Speed
|
400 Knots TAS at 25,000 ft.
|
|
Federal Specification
|
|
|
RTCA Environmental
|
DO-160C
|
|
FAA TSO
|
C66a, C74c
|
