COMANT DME / TRANSPONDER CI-105-9
Part #: CI-105-9
CI1059
R$3,979.08
CompararOverview
|

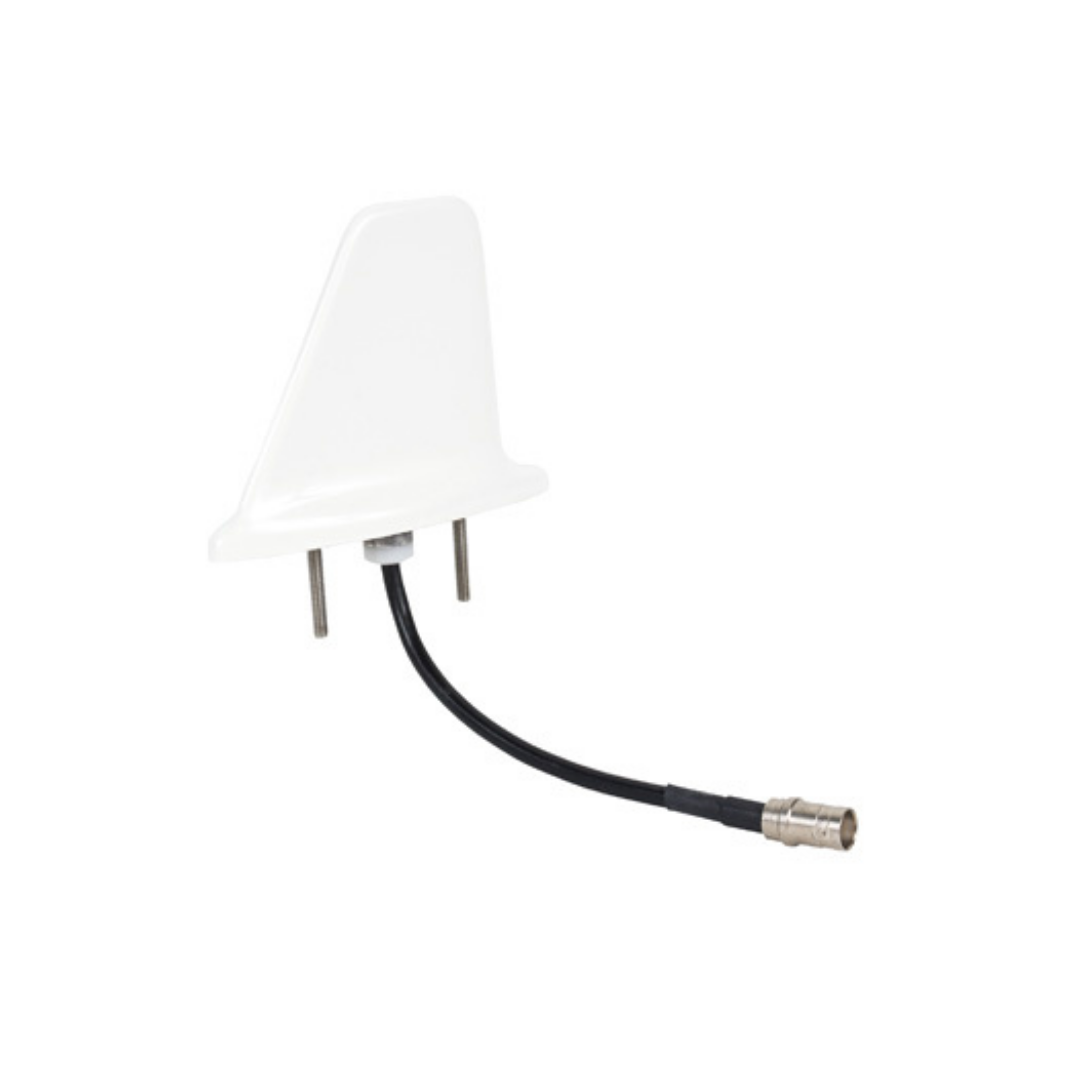

Frequency • 960-1220 MHz Broadband and rugged antenna designed for DME or tranponder use. Antenna assembly encased in a glass reinforced polyester molded shell. CI 105-9 comes standard with a 6” extension coax cable and BNC connector. This model offers standard two stud mounting, where the studs are extended to 1 inch in length. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
| Peso | 0.11 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 105-9 DME/ TRANSPONDER
|
|
|
Electrical
|
|
|
Frequency
|
960 to 1220 MHz 1030 to 1090 MHz |
|
VSWR
|
1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz |
|
Polarization
|
Vertical |
|
Radiation Pattern
|
Equivalent to 1/4 Stub
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
Open Circut
|
|
Power RF
|
2.5 KW Peak
|
|
Mechanical
|
|
|
Weight
|
0.24lb. Maximum
|
|
Height
|
3.23 in.
|
|
Material
|
Molded Radome
|
|
Finish
|
Polyurethane Enamel
|
|
Environmental
|
|
|
Temperature
|
-54ºC to +55ºC
|
|
Altitude
|
70,000ft.
|
|
Air Speed
|
400 Knots TAS at 25,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160C
|
|
FAA TSO
|
C66b, C74c
|
|
RTCA MOPS
|
DO-144, DO-189
|
