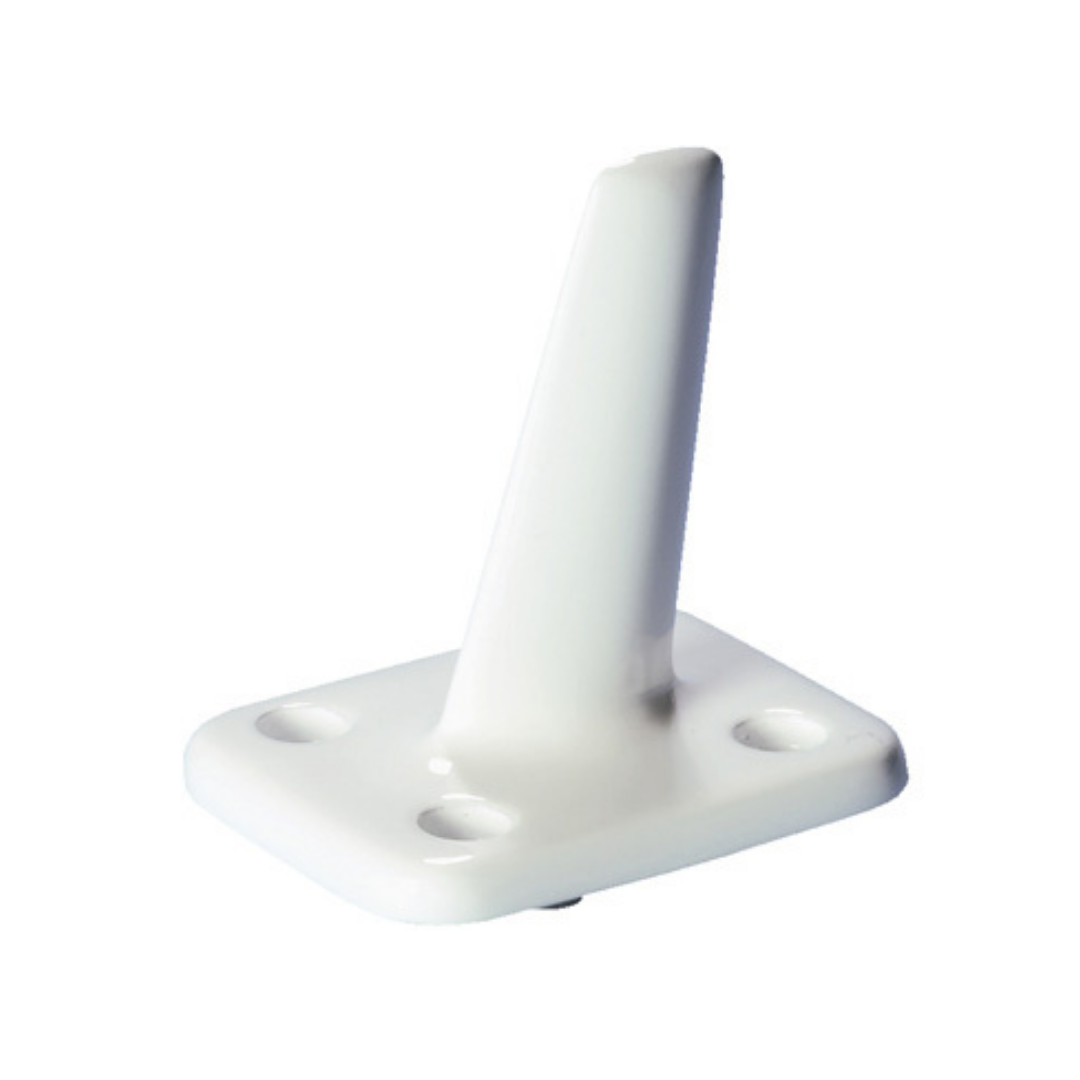

COMANT DME / TRANSPONDER CI-305
Part #: CI-305
CI305
R$3,989.07
CompararOverview
|
Frequency • 960-1220 Miniature high speed DME/Transponder – one of the smallest DME/Transponder antennas available from Comant. Less than 2.75 inches high, featuring a very low-drag frontal profile. Strong, lightweight and easy to mount using four external mounting holes through base. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
| Peso | 0.14 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 305 DME/TRANSPONDER
|
|
|
Electrical
|
|
|
Frequency
|
960 to 1220 MHz |
|
VSWR
|
1.8:1 Maximum |
|
Polarization
|
Vertical |
|
Radiation Pattern
|
Equivalent to 1/4 Stub
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
Open Circut
|
|
Power RF
|
1 KW Peak
|
|
Mechanical
|
|
|
Weight
|
0.3 lb. Maximum
|
|
Height
|
2.75 in. Maximum
|
|
Material
|
Molded Radome
|
|
Finish
|
White Polyurethane Enamel
|
|
Environmental
|
|
|
Temperature
|
-54ºC to +55ºC
|
|
Altitude
|
45,000ft.
|
|
Air Speed
|
600 Knots TAS at 35,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160A
|
|
FAA TSO
|
C66b, C74c
|
|
RTCA MOPS
|
DO-144, DO-189
|
