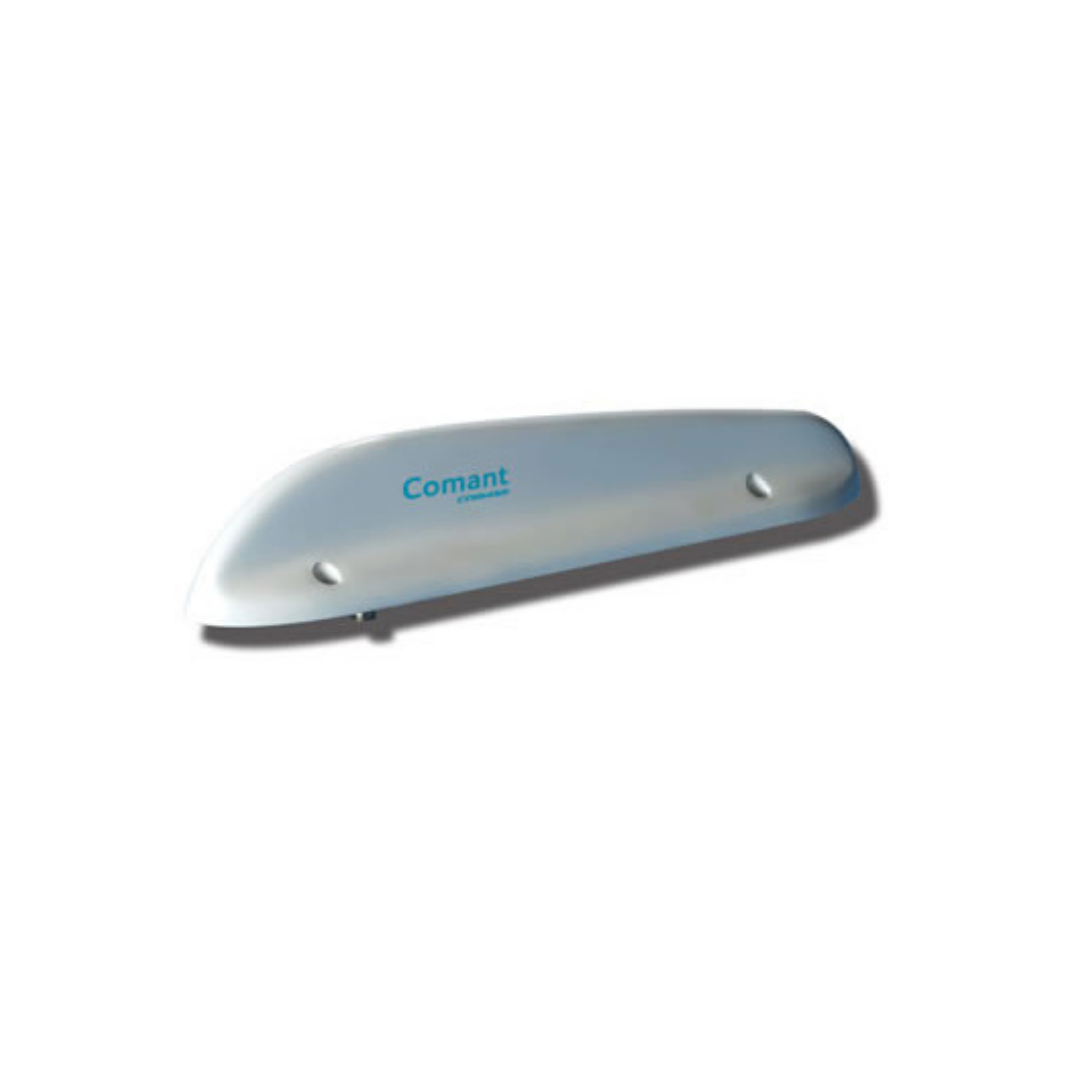

COMANT MARKER BEACON (CI-118-1)
Part #: CI-118-1
CI1181
R$8,887.94
CompararOverview
|
Frequency • 75 MHz Low-drag, lower profile alternative to the popular CI 102 ¡°boat style¡± marker beacon antenna. Approved for medium to high performance single, turbo-prop or jet aircraft and provides simple external mounting. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static. |
| Peso | 0.23 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 118-1 MARKER BEACON
|
|
|
Electrical
|
|
|
Frequency
|
75 MHz
|
|
VSWR
|
¡Â 1.5:1 Maximum
|
|
Polarization
|
Parallel to the Mounting Plane
|
|
Radiation Pattern
|
Partially Downward |
|
Impedance
|
50 Ohms
|
|
Resistance DC
|
DC Grounded
|
|
Power RF
|
Receive Only
|
|
Mechanical
|
|
|
Weight
|
0.5lb. Maximum
|
|
Height
|
2.40 in. Maximum
|
|
Material
|
Molded Radome
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC
|
|
Environmental
|
|
|
Temperature
|
-55¨¬C to +85¨¬C
|
|
Altitude
|
45,000 ft.
|
|
Air Speed
|
400 Knots TAS at 25,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160A
|
|
FAA TSO
|
C35d
|
|
RTCA MOPS
|
DO-138, DO-143
|
