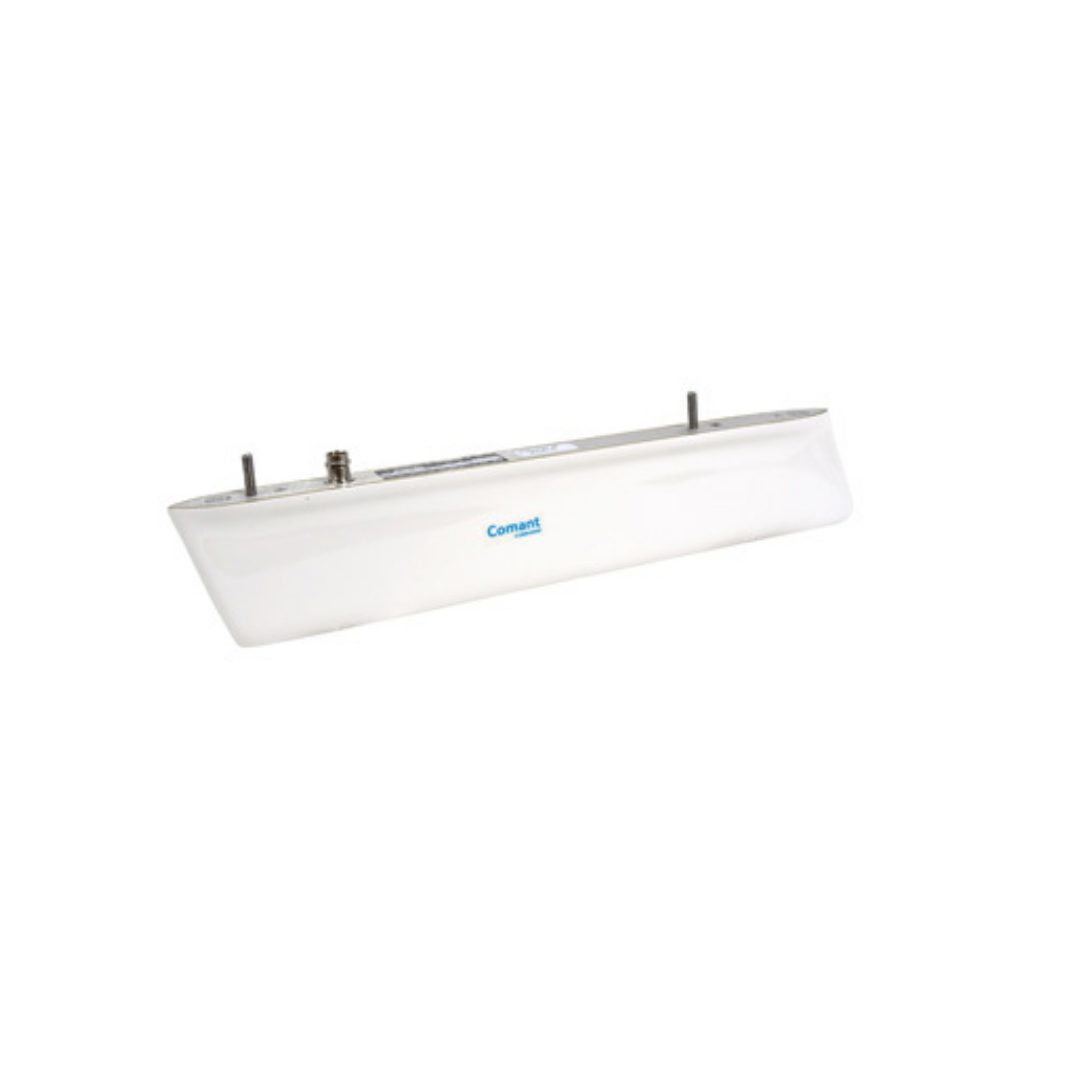

COMANT MARKER BEACON (CI-118-9)
Part #: CI-118-9
CI1189
R$9,977.68
CompararOverview
| Frequency 75 MHzIdentical to the CI 118 except the mounting configuration allows for “drop-in” replacement to the Honeywell Bendix-King KA 26 Marker Beacon. This Comant design has been tested to the tough DO-160D environmental standards. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static. |
| Peso | 0.29 lbs |
|---|---|
| Brands |
Specifications
|
MODEL 118-9 MARKER BEACON
|
|
|
Electrical
|
|
|
Frequency
|
75 MHz |
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
Parallel to the Mounting Plane
|
|
Radiation Pattern
|
Partially Downward
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
DC Grounded
|
|
Power RF
|
Receive Only
|
|
Mechanical
|
|
|
Weight
|
0.65 lb. Maximum
|
|
Height
|
2.69 in.
|
|
Material
|
Molded Radome
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160D
|
|
FAA TSO
|
C35d
|
|
RTCA MOPS
|
DO-138, DO-143
|
