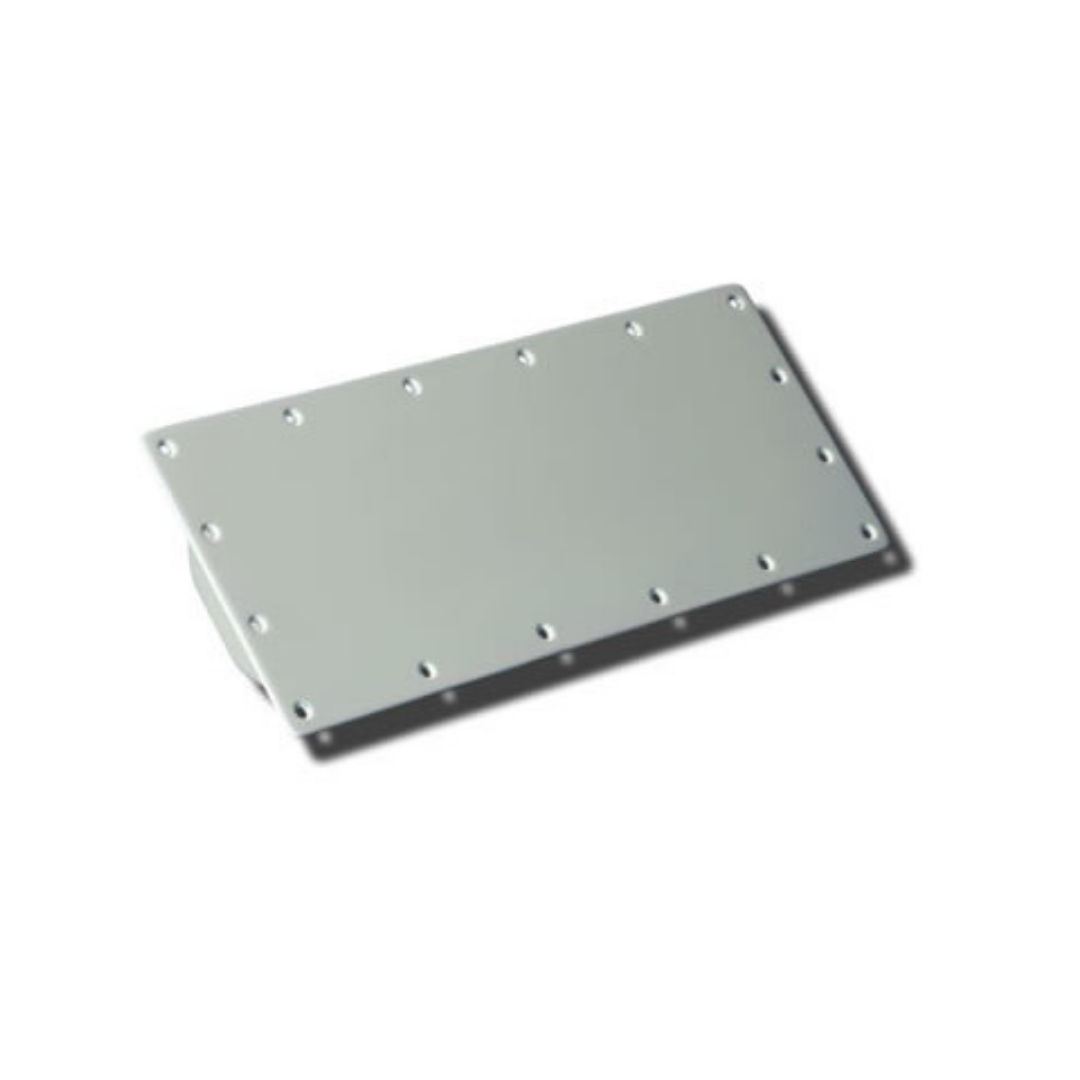

COMANT MARKER BEACON (CI-164)
Part #: CI-164
CI164
R$23,724.49
CompararOverview
|
Frequency • 75 MHz Lightweight flush mount antenna was originally designed for use on military aircraft. Provides for dualmarker beacon signal outputsatthe antenna, eliminating theneed fora separate marker beacon splitter. Antenna is housed in a aluminum enclosure with a glass laminate cover. Internal components are potted in place for mechanical integrity. The CI 164 is designed for curved “crown” surface mounting as is currently used on the Cessna Citation I and II. |
| Peso | 0.45 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 164 MARKER BEACON
|
|
|
Electrical
|
|
|
Frequency
|
75 MHz
|
|
VSWR
|
1.5:1 Maximum @ 75 Mhz 5.0:1 Maximum @ ± .15 MHz |
|
Polarization
|
Horizontal
|
|
Insolation Between Ports
|
22dB
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
DC Grounded
|
|
Power RF
|
Receive Only
|
|
Mechanial
|
|
|
Weight
|
1.0 lb. Maximum
|
|
Height
|
Flush Mount
|
|
Material
|
Aluminum Housing/Glass Laminate Cover
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC (Two Places)
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85º C
|
|
Altitude
|
45,000 ft.
|
|
Air Speed
|
600 Knots TAS at 55,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Enviornmental
|
DO-160A
|
|
FAA TSO
|
C35d
|
|
RTCA MOPS
|
DO-138, DO-143
|
