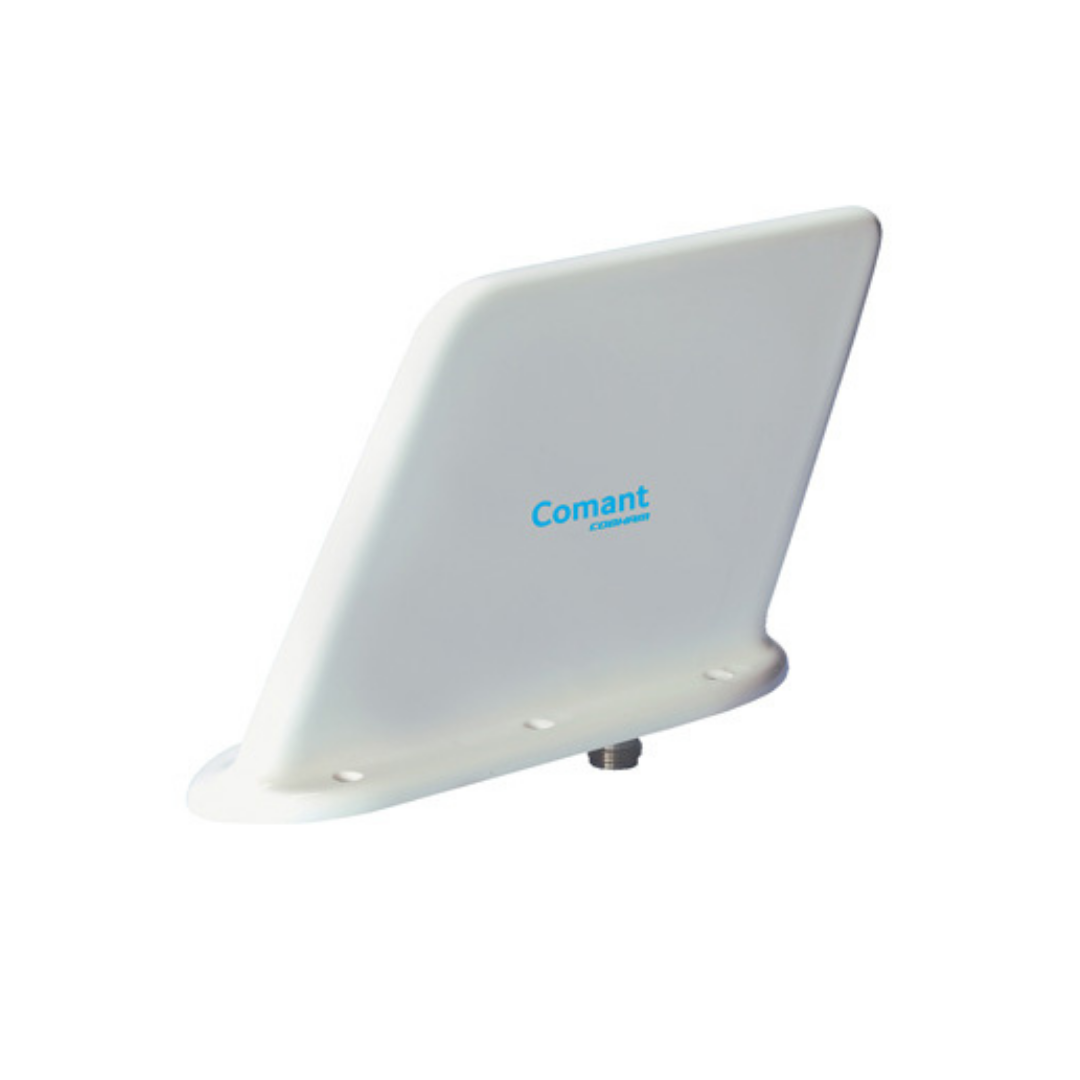

COMANT UHF ANTENNA CI-285
Part #: CI-285
CI285
R$12,237.16
CompararOverview
|
Frequency • 400-960 MHz UHF blade antenna design for high performance aircraft over the full range of 400-960 MHz. Low profile, low drag, light weight antenna is packaged in a molded body and metal mouting base to ensure stable performance in tough environmental conditions. Features vertically polarized/omni-directional pattern, extremely wide band/high efficiency electrical performance. DC grounding for lightning protection, 6 hole mounting. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
| Peso | 0.34 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 285UHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
400-960 MHz
|
|
VSWR
|
2.0:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Equivalent of 1/4 Stub |
|
Impedance
|
50 Ohms
|
|
Power RF
|
100 Watts
|
|
Mechanical
|
|
|
Weight
|
0.75lb. Maximum
|
|
Height
|
5.20 in. Maximum
|
|
Material
|
Lexan
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
N (Female)
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85ºC
|
|
Altitude
|
55,000 ft.
|
|
Air Speed
|
600 Knots TAS at 25,000 ft.
|
