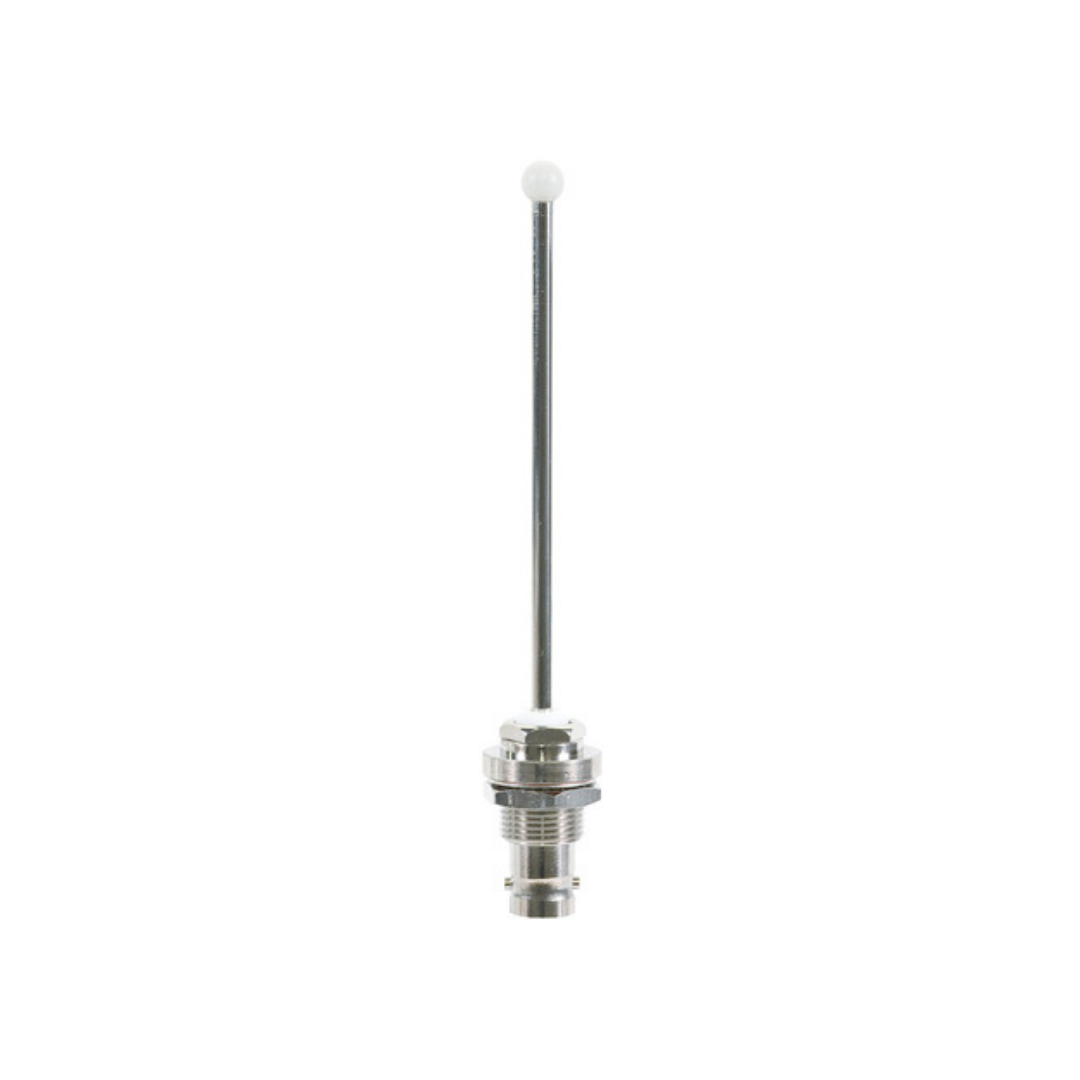

COMANT UHF ANTENNA CI-306
Part #: CI-306
CI306
Comparar
PNs Alternativos
- PN: AV-21 - View
Overview
|
Frequency • 800-870 MHz Stub-type antenna tuned for the 800- 870 MHz radio telephone band. Intended for use on low-flying aircraft and helicopters. CI 306 available with BNC connector and mounts through a single 0.600” inch diameter hole. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
| Peso | 0.07 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 306 UHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
800 to 870 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Equivalent of 1/4 Stub |
|
Impedance
|
50 Ohms
|
|
Power RF
|
50 Watts
|
|
Mechanical
|
|
|
Weight
|
0.15 lb. Maximum
|
|
Height
|
4.0 in. Maximum
|
|
Material
|
Nickle Plated Brass
|
|
Finish
|
Tin Nickel Alloy
|
|
Connector
|
BNC
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +70ºC
|
|
Altitude
|
25,000 ft.
|
|
Air Speed
|
250 Knots TAS at 25,000 ft.
|
