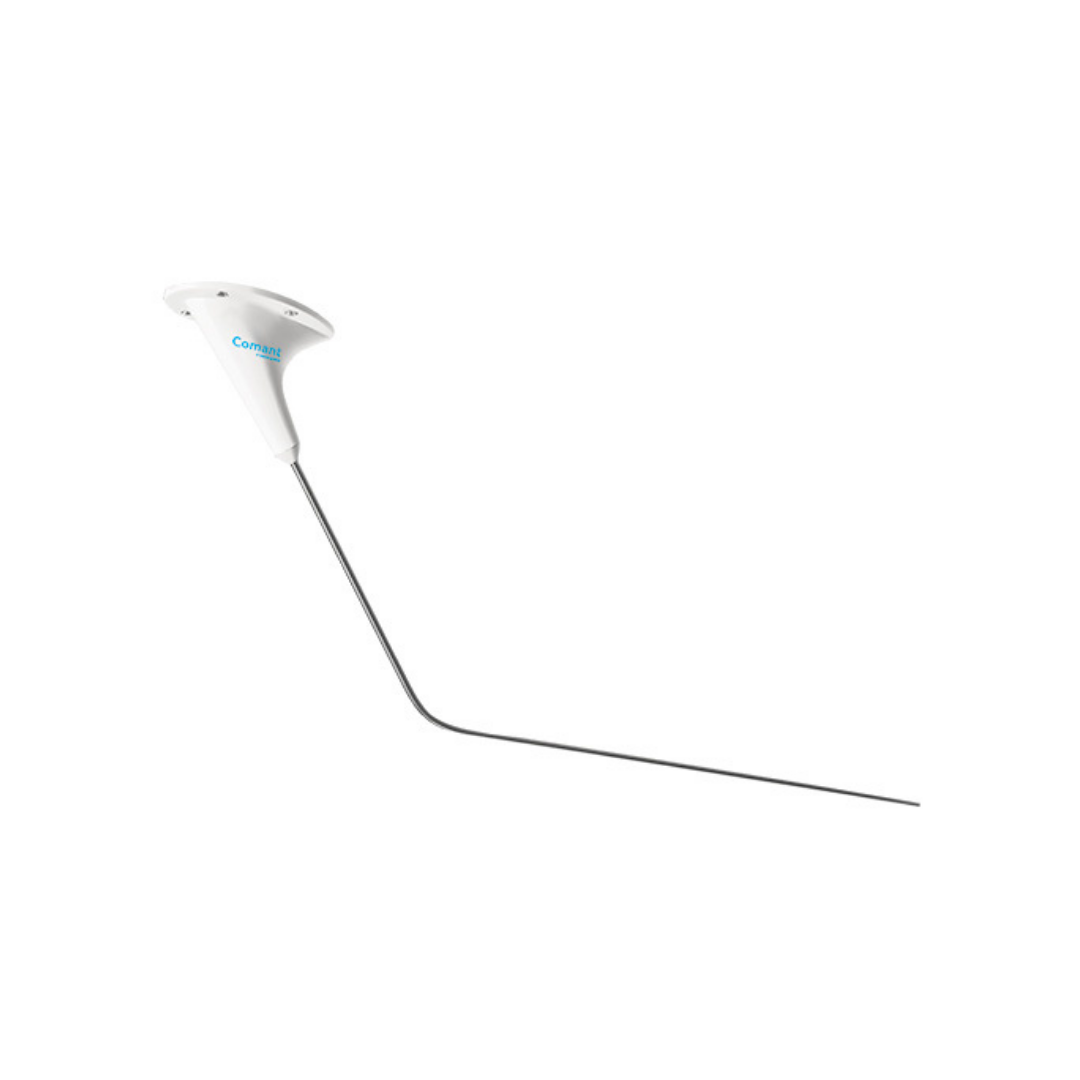

COMANT VHF COMMUNICATIONS ANTENNA CI-292-2
Part #: CI-292-2
CI2922
R$3,799.12
CompararOverview
|
Frequencies Covered Identical to the CI 292-1 except that it provides a stainless steel bent-whip radiator which makes it ideal for helicopters and bottom mounting underneath fixed wing aircraft. The CI 292-2 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO 186A MOPS. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
| Peso | 0.23 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 292-2 VHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
118-137 MHz
|
|
VSWR |
3.0:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms
|
|
Power
|
50 Watts
|
|
Mechanical
|
|
|
Weight
|
0.5 lb. Maximum |
|
Height
|
8.5 in. Maximum
|
|
Material
|
Cast Housing/StainlessWhip
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85ºC
|
|
Altitude
|
50,000 ft.
|
|
Air Speed
|
250 Knots TAS
|
|
Federal Specification
|
|
|
RTCA Environmental
|
DO-160D
|
|
FAA TSO
|
C37d, C38d
|
