COMANT VOR/GS ANTENNA CI-205-3

Frequency 108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope)

VOR/ Glide Slope High Performance Navigation Antenna Set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/ drag, tubular structure to minimize helicopter rotor “down wash” forces, wide band/high efficiency electrical performance and DC grounding for lightning protection.

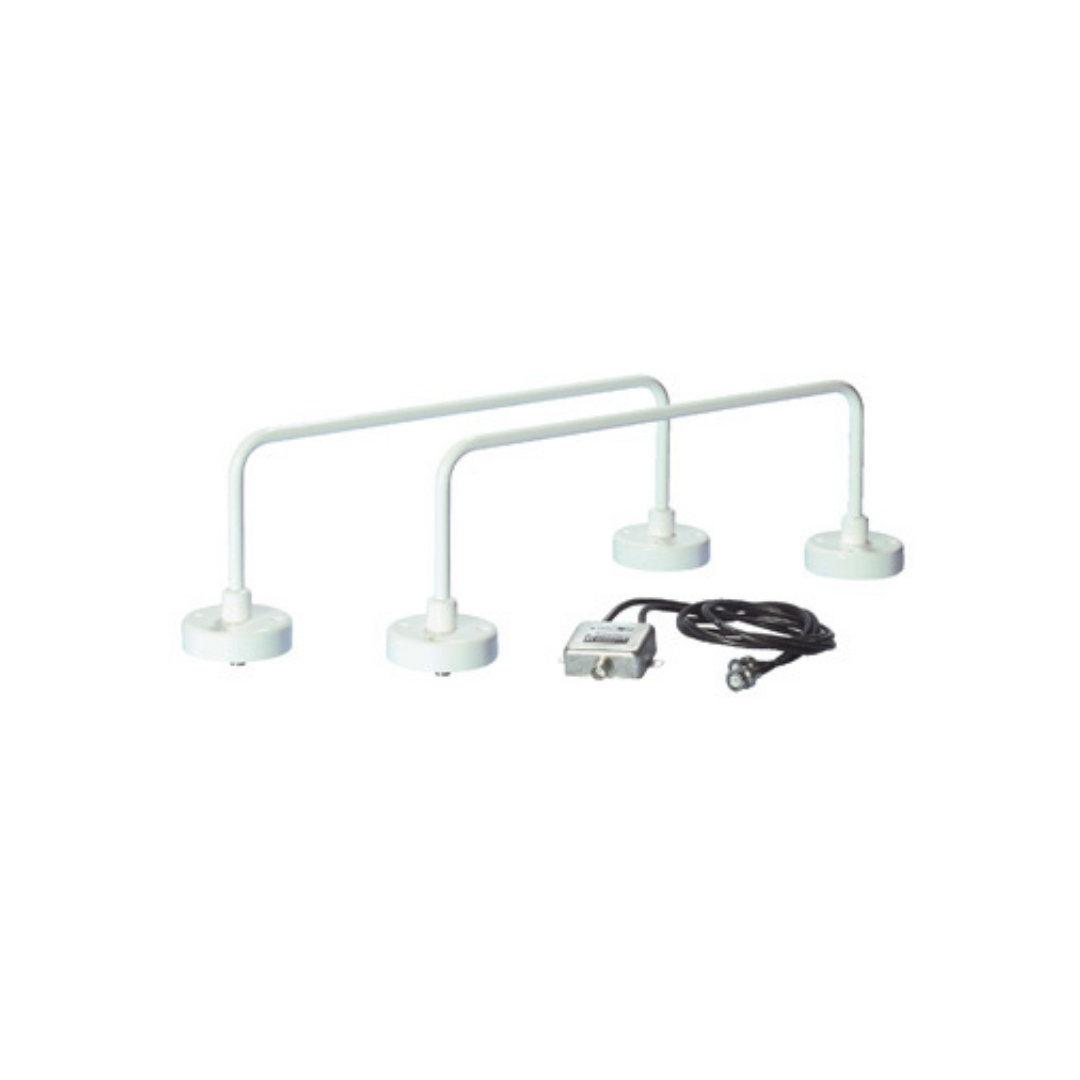

Set includes a pair (2) of “towel bar” sensor elements each with a single BNC output connector and a one-piece dual coax interconnect signal combiner harness with a single BNC connector output. Provides for a single cable routing to the avionics location.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Approved for light helicopter installations.
