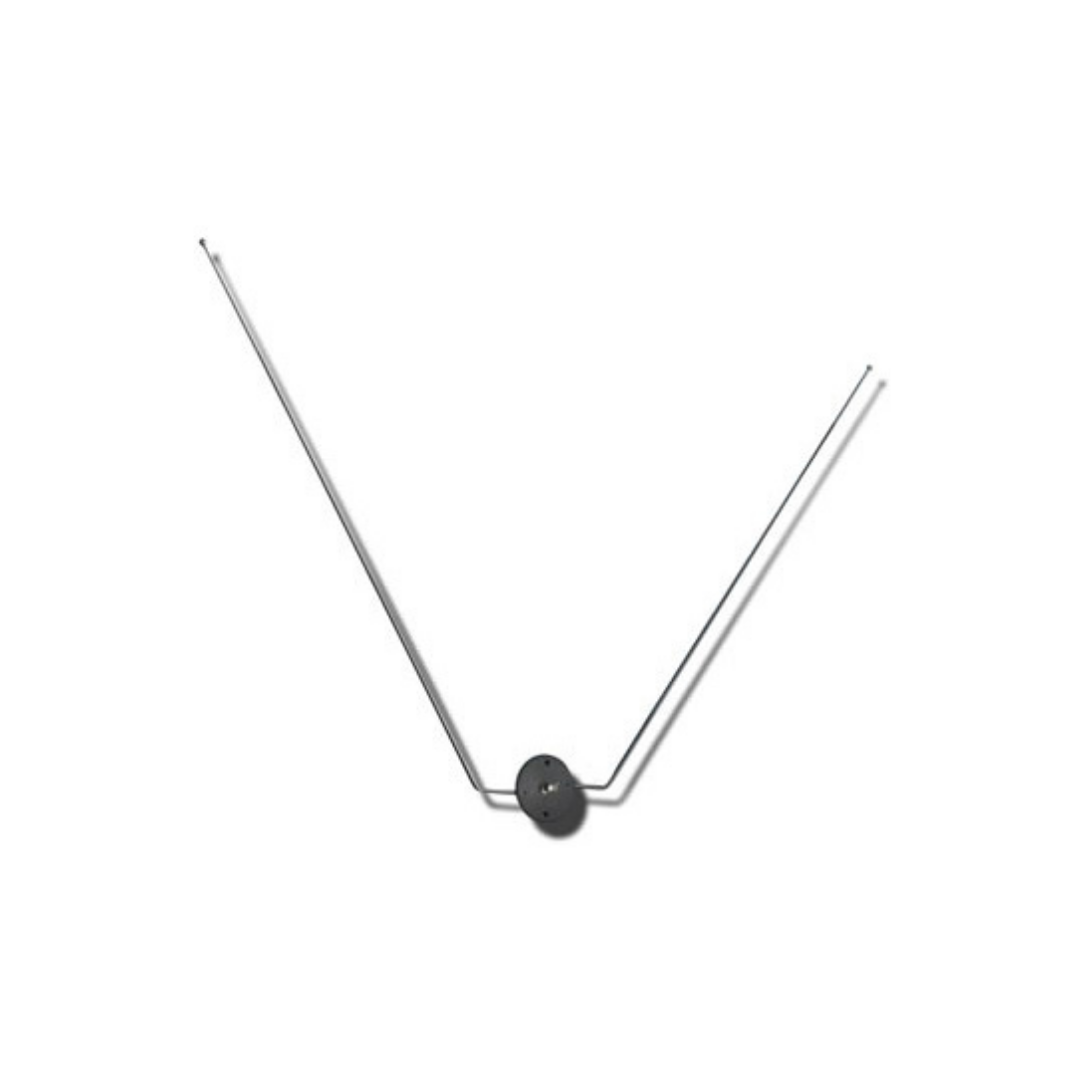

COMANT VOR/LOC/GS ANTENNA CI-158C-2
Part #: CI-158C-2
CI158C2
R$4,728.90
CompararOverview
|
Frequency • 108-118 MHz (VOR/LOC) “V” Dipole VOR/LOC/GS antenna with detachable elements mounts on top of the vertical fin stabilizer offering the four-hole mounting configuration found on many beech aircraft. RF design similar to the CI 157P. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Not approved for helicopter installations. Applications |
| Peso | 0.16 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 158C-2 V- DIPOLE
|
|
|
Electrical
|
|
|
Frequency
|
108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope) |
|
VSWR
|
3.0:1 108-118 MHz (VOR/ LOC) 3.0:1 329-335 MHZ(Glide Slope) |
|
Polarization
|
Horizontal
|
|
Radiation Pattern
|
Dipole
|
|
Impedance
|
50 Ohms Nominal
|
|
Power
|
Receive Only
|
|
Mechanical
|
|
|
Weight
|
.35 lb. Maximum
|
|
Height
|
17-5/8 in. Maximum
|
|
Material
|
Derlin Housing/ Stainless Whips
|
|
Finish
|
Black Housing/ Stainless Whips
|
|
Connector
|
BNC
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85ºC
|
|
Altitude
|
50,000ft.
|
|
Air speed
|
250 Knots TAS @ 25,000 ft
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160
|
|
FAA TSO
|
C34e, C38e, C40c
|
|
RTCA MOPS
|
DO-192, DO-195, DO-196
|
Dimensions
