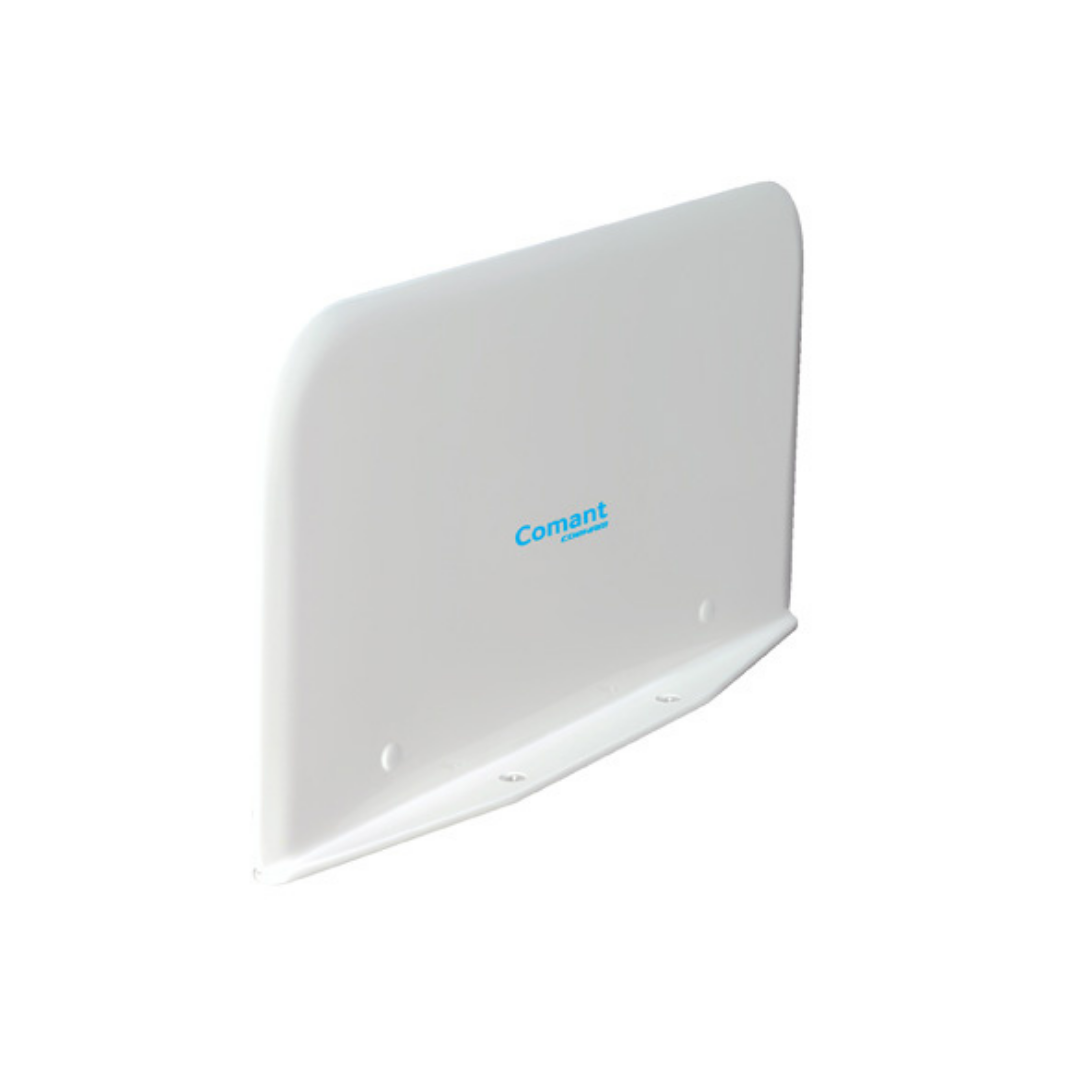

COMANT VOR/LOC/GS (CI-120-400)
Part #: CI-120-400
CI120400
R$19,125.56
CompararOverview
| Frequency • 108-118 MHz (VOR/LOC) 329-335 MHz (GS) Comant designed this VOR/LOC/GS navigation antenna blade set for the Cessna 182 Series. Unique design and manufacturing techniques keep this set competively priced while offering the reduced-drag advantages of a blade set. Complete kit includes a pair (2) of blades, each with a single BNC output, and two coax interconnect cables. Single BNC output phasing combiner providing for a single RF cable run to the avionics installation. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Applications |
| Peso | 0.64 lbs |
|---|---|
| Brands |
Specifications
|
MODEL CI 120-400 VOR/GS ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope) |
|
VSWR
|
6.0:1 108-118 MHz (VOR/ LOC) 5.0:1 329-335 MHZ(Glide Slope) |
|
Polarization
|
Horizontal
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms Nominal
|
|
Power
|
Receive Only
|
|
Mechanical
|
|
|
Weight
|
1.4 lb. Per Blade
|
|
Height
|
6.0 in. Maximum
|
|
Material
|
Glass Enforced Radome
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC/ Single Output Combiner
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85ºC
|
|
Altitude
|
50,000ft.
|
|
Air speed
|
300 Knots TAS @ 25,000 ft
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160D
|
|
FAA TSO
|
C34e, C36e, C40c
|
|
RTCA MOPS
|
DO-192, DO-195, DO-196
|
