CI42016
R$9,337.83
Comparar|

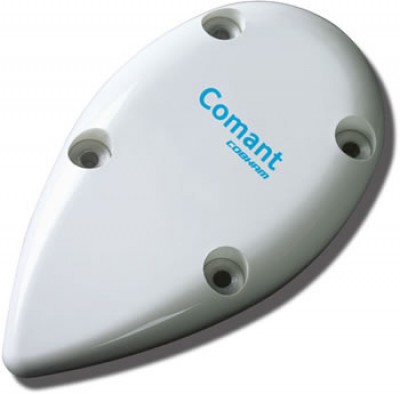

Comant’s ComDat® XM Weather antenna designed for Heads Up Technologies (HUT) receivers with longer coaxial cable runs . Features robust TNC female connector. Conforms to the popular teardrop footprint standard on many general aviation aircraft and business jets. |
| Peso | 0.12 kg |
|---|---|
| Brands | Comant |
|
MODEL CI 420-16
|
|
|
XM Weather data Specifications
|
|
|
Frequency
|
2332.5-2345.0 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
LHCP
|
|
Radiation Pattern
|
Hemispherical
|
|
Impedance
|
50 Ohms
|
|
Gain
|
26-30 dB
|
|
DC Voltage
|
4 V Min./ 4.7 V Typical / 5.5 V Max.
|
|
DC Current
|
25mA Min/ 45mA Typical / 55mA Max.
|
|
Noise Figure
|
2.7 dB Maximum
|
|
Mechanical Environment
|
|
|
Weight
|
4.2 Ounces
|
|
RTCA Env./ TSO
|
DO 160-D
|
|
Connector
|
XM-TNC (Female)
|
Não há avaliações ainda.
