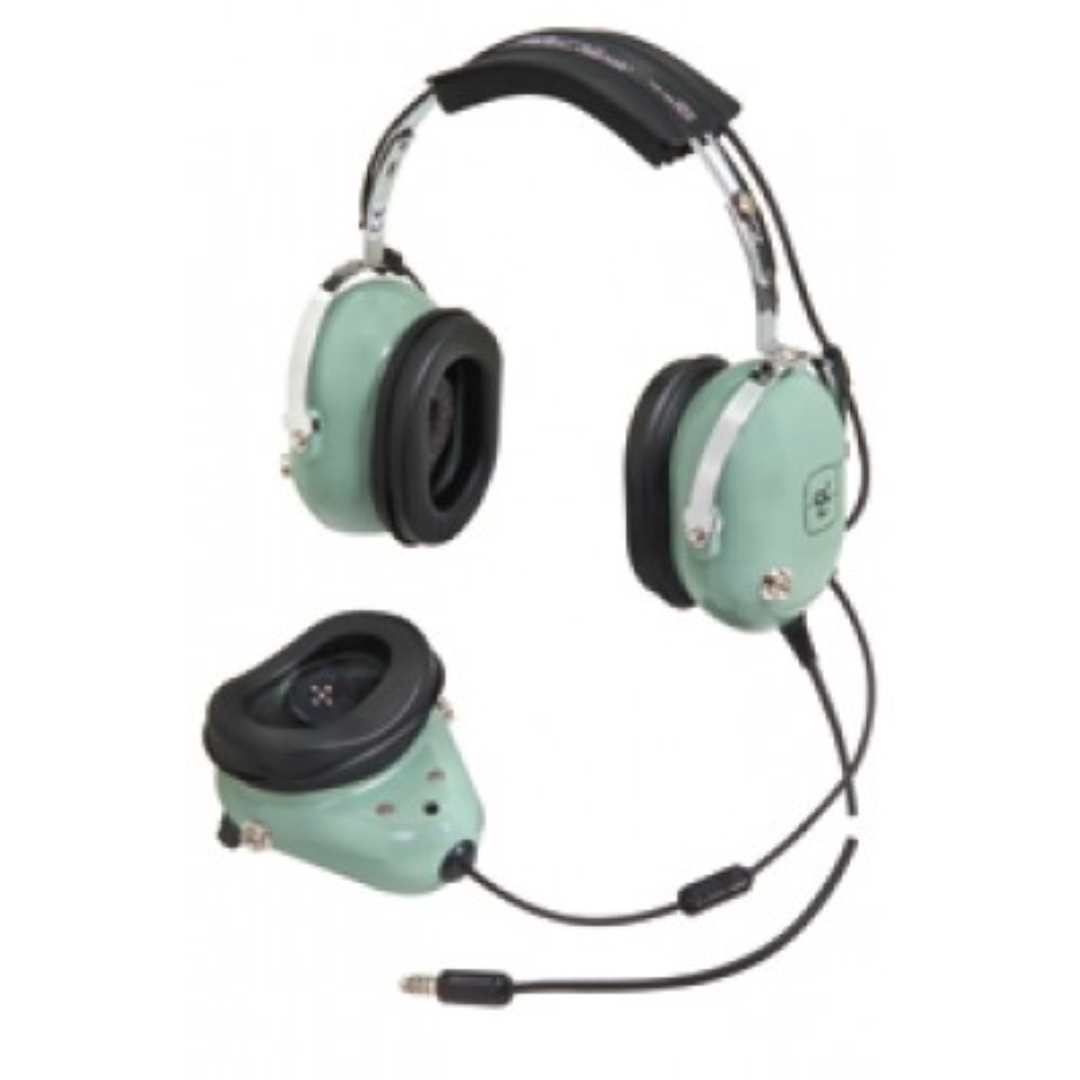

12512G-01 HEADSET-MIC SHIELD,OTH H7010
Part #: 12512G-01
12512G01
R$3,352.77
CompararOverview
|
Ground Support Headsets are designed to facilitate communication when background noise or distance makes it extremely difficult to communicate. During ground-support operations, communication is critical to ensure the safety of everyone in the vicinity as well as the protection of the aircraft from accidental damage. |
| Peso | 0.45 lbs |
|---|---|
| Dimensões | 10.5 × 10.5 × 4.5 in |
| Brands |
SPECIFICATIONS
• Sensitivity: 50 to 107 mV Across 5 Ohm Load at 1 KHz with input of 103 dB SPL at 1/4 in from source
• Frequency Rating: 100 to 5500 Hz (Earphone), 200 to 6000 Hz (Mic)
• Material: Carbon Steel
• Impedance: 10 Ohm (Earphone), 5 Ohm (Mic)
• Cord Length: 30 in
• Plug Type: U-174/U
• Noise Reduction Rate (NRR): 26 dB
• Operating Temperature: -20 to 55 deg C
• Dome Material: ABS
• Domestic/Import: Domestic
FEATURES
• Passive noise-attenuating headset
• Noise-shielded microphone (muff) with on/off switch
• Microphone muff secured to mouth by adjustable, snap-fastened nylon straps
• Foam, ribbed head pad with foam ear seals for maximum comfort
• Corrosion-resistant, chrome-plated, head pad/stirrup assembly
• DC-87 dynamic noise-cancelling microphone MIL-M-26542F (USAF Specifications)
TECHNICAL INFORMATION
• MIL-M-26542F (USAF Specifications)
APPLICATIONS
• Deicing
• Push-Back
• Ramp Communications and Maintenance
