Overview

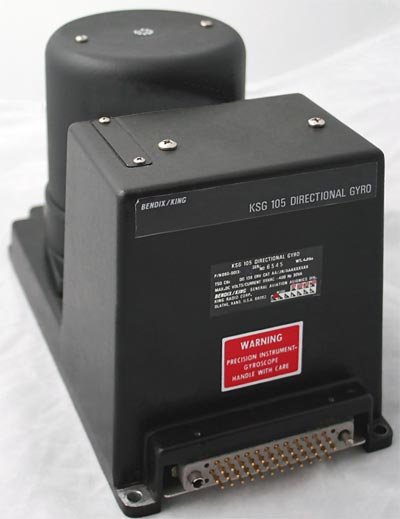

- Slaved directional gyro for use in KCS-305 compass system
- Typically used in conjunction with KMT-112 flux valve and KA-51A/B slaving accessory
- With KMT-112 and KA-51A/B this unit will provide heading information for any standard ARINC Autopilot or Flight Director System as well as heading cards on both Pictorial Navigation Indicators (PNI) and RMIs
- Has dual ARINC type synchro transmitters which are mechanically positioned for alignment by a stepper motor
- Tracks the true or slaved magnetic heading in 1/4 degree increments
- Allows manual slaving and monitoring of system’s performance through pilot-operated controls
- 115 vac, 400 Hz
- TSO’d
- -02 version available with added Tumble Detect Circuit which is used to cycle back to fast slave and realign the compass magnetic heading when unusual attitude or rates causes large errors
| Peso | 2.18 lbs |
|---|---|
| Dimensões | 5.370 × 7.790 × 4.290 in |
| Brands |
CONDITION: AS REMOVED (AR)
SPECIFICATIONS
| SIZE: | 5.370″ x 7.790″ x 4.290″ | WEIGHT: | 4.8 lbs. |
| TSO COMPLIANCE: | AAJAAAXXXXXX | MOUNTING: | Rigid mount with four #8 screws |
| TEMPERATURE RANGE: | -55C to +55C | VIBRATION: | .02″ excursion from 5 to 55 Hz 3g from 55Hz to 2000Hz |
