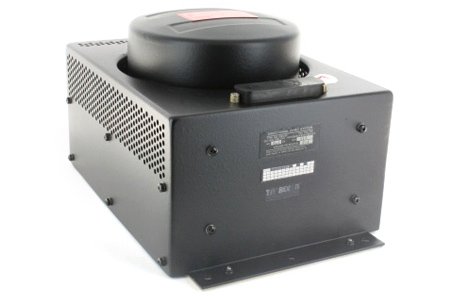

DIRECTIONAL GYRO 622-6136-002 OVERHAULED EXCHANGE
Part #: 622-6136-0026226136002
Call for price
CompararOverview
- Directional Gyro used in Collins MCS-65 Magnetic Compass System
- Used in conjunction with FDU-70 Flux Detector Unit, and either CCU-65 Control & Compensator Unit or RCP-65 Remote Compensation Unit
- Contains air-erected directional gyro and compass electronics
- Compass electronics combines the short-term directional information from the gyro with long-term heading information from the FDU-70 to obtain accurate heading information for use or display by electromechnical or electronic horizontal situation indicators (HSIs), radio magnetic indicators (RMIs), course indicators, and digital autopilots
- 28VDC aircraft input power
- Mounted on a surface perpendicular to aircraft yaw axis within 1 degree
- Version available that provides slaving meter drive signal and sends DG mode annunciation data on serial bus (-002 see in specifications)
| Peso | 5.6 kg |
|---|---|
| Dimensões | 6 × 5.210 × 9.50 cm |
SPECIFICATIONS
| DIMENSIONS: | 6.00″W x 5.210″H x 9.50″L | WEIGHT: | 5.6 lbs. |
| TSO: | C6c | TEMPERATURE: | -55 to +70C (continuous) |
| ALTITUDE: | up to 55000 ft. | SHOCK: | 6g |
| WARMUP TIME: | 2 minutes (approx) | ACCURACY: | +-2 degrees of local magnetic heading |
